Panel PC comes with a 21.5 inch full IP67/69K rated anti-corrosion stainless steel touch panel, Celeron N2930 fanless CPU, capacitive type touch screen, and extended working temperature of -10°C to 55°C. Option for Core i5 5200U / Core i7 6600U CPU and DC power input.
Loading...
17

PCH8170

19

PCH8190

PCH8215

  • Full IP67/69K rated rugged stainless steel enclosure
  • 21.5 inch 1920 x 1080 LED backlight LCD monitor
  • Capacitive type touch screen
  • Intel Celeron N2930 1.83GHz processor
  • Option for Core i5 5200U / Core i7 6600U
  • 2 x USB + 1 x LAN + 1 COM port
  • 110/240VAC power input, option for DC power input
  • Extended working temperature -10°C to 55°C
$2,086.00
Availability: In stock
SKU
PCH8215
Email
21.5 inch Panel PC with a capacitive type touch screen, Celeron N2930 embedded CPU, full IP67/69K rated stainless steel chassis & connector, and AC power input.
Material
SUS316 stainless steel
IP67/69K rated anti-corrosion stainless steel
LCD panel
Size: 21.5”
Max Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): -85~85 (H); -80~80 (V)
Colors: 16.7M, 8 bits
Option for high brightness / optical bonding
Touch screen
Capacitive touch screen
System
CPU: Celeron N2930 1.83GHz (std)
Option for Core i5 5200 / Core i7 6700
Memory: 1 x 4GB DDR3 SO-DIMM (Max.8GB)
Storage: 1 x 128GB SSD (Max.250GB)
Ethernet: 1 x Gigabit LAN
Option for WiFi and Bluetooth module
Connectors - C16 / IP Rated
Serial Ports: 1 x RS232 (IP67)
USB Ports: 2 x USB (IP67)
Ethernet: 1 x RJ45 GbE LAN (IP67)
Power: 1 x AC Input (IP66)
IP66 rated 6ft extended cables included for each I/O
Power Supply
110/240VAC power input
Power consumption: 50W (typ)
Option for 9 to 36V DC power input
Weight
24.25 lb / 11 kg

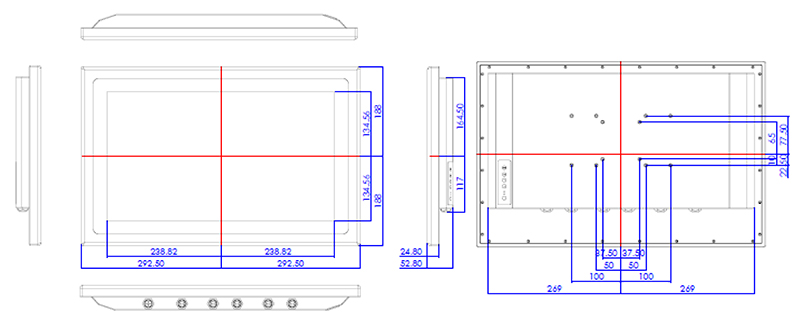

Dimension
23.03”(W) x 2.07”(D) x 14.80”(H)
Mounting
VESA mount (75mm /100mm / 200mm)
Option for panel mount with gasket
Environmental
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Relative Humidity: 10% to 95%, non-condensing
IP Rating
Full-IP67/69K rated protection

PCH8215:
21.5 inch 1920 x 1080 full HD LCD, full IP67/69K rated stainless steel enclosure, Celeron N2930 1.83GHz CPU, capacitive type touch screen, 2 x USB + 1 x LAN + 1 x COM, 6ft cables for each I/O, 110/240VAC power input.
Lead Time: 6 to 8 weeks

Document
Description
Download Link
file iconPCH8215-SP(V1-2).pdf
Spec Sheet
file iconPCH8XXX-UM(V1-2).pdf
User Manual
  • PCH8215
    Panel PC - Fanless Embedded Computer
    Full IP67/69K rated stainless steel enclosure
    Celeron N2930 1.83GHz CPU
    Option for Core i5 5200 / Core i7 6600U CPU
    4GB memory, up to 8GB
    1 x 128GB SSD, up to 250GB
    21.5 inch 1920 x 1080P 300-nits LCD panel
    Capacitive type touch screen
    AC power input, option for DC power input
    VESA mount ready
    Starting at:
    $2,086.00
PCH8215
$2,086.00

PRODUCT DESCRIPTION
A 21.5 inch full HD 1080P display resolution intelligent display stainless steel unit for food and automation control applications. This stainless steel panel PC has a display resolution of 1920 x 1080 HD graphic performance, resulting in better and enhanced qualities of pictures and multimedia. The system features a Bay Trail-M Celeron N2930 1.83GHz Quad-Core CPU. Option for Core i5 5200 and Core i7 6600U for the high-performance application and keep the same fanless design  It is a quad-core CPU, which means more productivity and multitasking with multiple programs all running at the same time. Quad cores are designed for long term use. The system presents multiple I/O interfaces. Featuring two USB ports, one RJ45 Gigabit LAN, one RS-232, and one AC power input. The PC operates at a wide range of working temperatures from -10°C to 55°C (14°F to 131°F) and humidity levels of 10% to 95%. The panel PC is protected with a fully IP67/69K rating stainless steel enclosure. This level of ingress protection meets the standards for industrial application with its nature of being dust and water-resistant. On top of that, the main level of protection is the stainless steel itself. Many benefits can come into play when using stainless steel finished panel PCs. Using this element can prevent a myriad of damages that can be potentially harmful to a PC in the long run. The PCH8215 allows for a full wash-down with its fully sealed connectors and slots. Using stainless steel also allows for easier cleaning and presents a cleaner system. The nature of stainless steel does not attract bacteria to stick on so it is an ideal fit for harsh demanding environments such as those in kitchens, hospitals, and food processing plants. This robust piece of equipment is essential for extreme industrial applications and designed for long term use.
