The PC9101 is a 10.1 inch fanless industrial panel PC powered by the Intel Celeron N2930 1.83GHz CPU with DDR3L memory and SATA MO-297 SSD bay. The panel PC features an aluminum die-casting chassis with IP66 rated waterproof front bezel, various I/O ports, and a 9 to 36V DC power input. Option for a PCAP touch screen / 1000-nit high brightness / optical bonding, mini PCIe slot, -20°C to 60°C wide operating temperature, and external AC power adapter.
Loading...
8

PC9080

15

PC9150

PC9101

  • 10.1 inch 1280 x 800 350-nit industrial LCD panel
  • Die-cast aluminum bezel with IP66 rated waterproof front bezel
  • Intel Celeron N2930 1.83GHz quad-core CPU with DDR3L memory
  • 2 x USB 3.0, 1 x RS-232/422/485, 1 x RS-232, 1 x Audio, 2 x GbE LAN
  • Resistive type touch screen, option for Projected Capacitive touch screen
  • Option for 1000-nit high brightness display or optical bonding
  • Option for -20°C to 60°C wide range working temperature
  • Wide range 9 to 36V DC power input
$1,105.00
Availability: In stock
SKU
PC9101
Email
10.1" 1280 x 800 fanless industrial touch panel PC comes with Celeron N2930 CPU, 4GB DDR3L memory, IP66 rated flat front bezel, and an aluminum die-casting chassis.
Material
Aluminum die-casting chassis
IP66 compliant front panel
LCD panel
Size: 10.1 inch TFT LCD
Max. Resolution: 1280 x 800
Brightness (cd/m²): 350
Contrast Ratio (typ.): 800:1
Viewing Angel (H/V): 170° x 170°
MTBF (hrs): 25,000
Color: 16.7M
Touch Screen
Resisitve type touch screen
Light Transmission: 80%
Interface: USB
Projected Capacitive type touch screen (option)
Light transmission: 90%
Interface: USB
System
CPU: Celeron N2930 1.83GHz
Memory: Onboard 4GB DDR3L 1333MHz
Chipset: SoC
Storage
1 x SATA MO-297 SSD bay
Expansion Slot
1 x internal mini-PCIe slot full size
Connectors
2 x USB 3.0 type A
1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2
1 x Audio Line Out
2 x GbE LAN RJ-45
1 x 3-pin terminal block for DC power input
1 x 2-pin connector for power on/off button
Option for additional I/O ports
Power Supply
Power Input: 9 to 36V DC power input
Power Consumption: 28W (Max)
Option for external AC power adapter
Mounting
Panel or VESA (100mm) mount
Operating System
Supports Windows 7, Windows Embedded Standard 7, Windows 10
Weight
4.41 lb / 2 kg

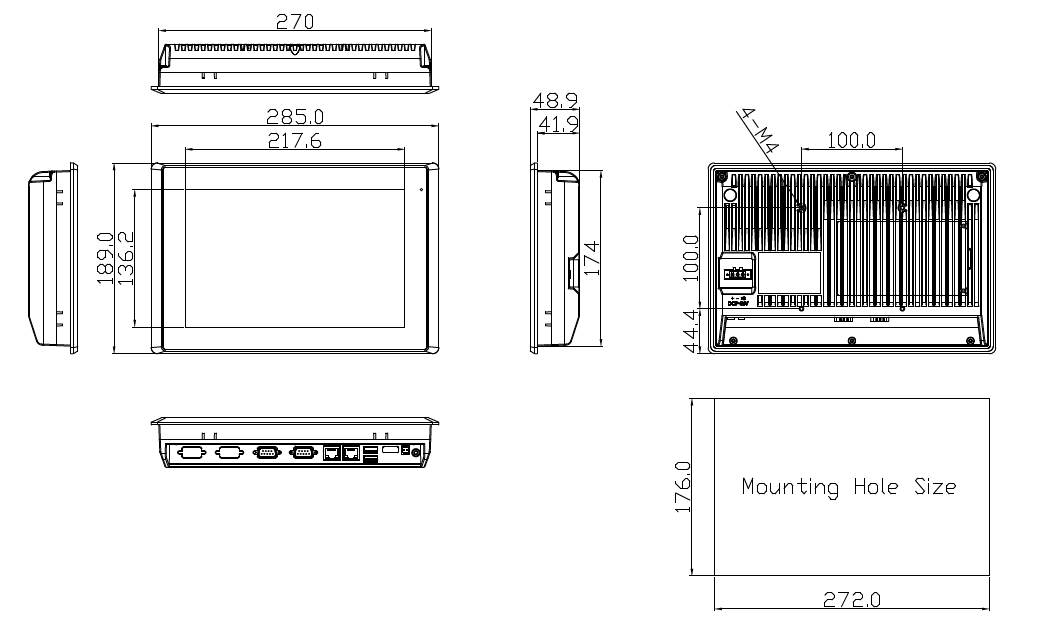

Dimension
11.22”(W) x 1.93”(D) x 7.44”(H)
Environmental
Operating Temperature: 0°C to 50°C
Option for -20°C to 60°C wide range working temperature
Storage Temperature: -30°C to 70°C
Relative Humidity: 10 to 90% @40°C, non-condensing
Certification
CE, FCC Class A

PC9101:
10.1 inch 1280 x 800 fanless touch panel PC, Resistive type touch screen, Intel Celeron N2930 1.83GHz CPU, 4GB memory, 9 to 36V DC power input, IP66 rated front bezel. Option for PCAP type touch screen / 1000-nit high brightness display / optical bonding, external AC power adapter, -20°C to 60°C wide operating temperature, and Windows OS.

Document
Description
Download Link
file iconPC9101-SP(V1-2).pdf
Spec Sheet
file iconPC9XXX-UM.pdf
User Manual
  • PC9101
    10.1" 1280 x 800 resistive type touch screen monitor
    Option for Projected Capacitive type touch screen
    Option for 1000-nit high brightness or optical bonding
    Onboard 4GB DDR3L memory & 64GB SSD
    Option for -20°C to 60°C wide operating temperature
    Wide range 9 to 36V DC power input
    Panel / VESA mount (100mm) ready
    Starting at:
    $1,105.00
PC9101
$1,105.00

PRODUCT DESCRIPTION
PC9101 is a fanless 10.1" 1280 x 800 LCD PC with resistive type touch screen, wide range working temperature, and Celeron N29301.83GHz CPU. The LCD panel is 10.1” with a maximum resolution of 1280 x 800, 350 nits brightness, 800:1 contrast ratio, displays 16.2 million colors, and mean time between failures at 50,000 hours. The graphical image quality will be superior and the display will be long-lasting. It contains a resistive type touch screen monitor with 80% light transmission and RS-232 interface. The option for a projected capacitive type touch screen is also available. The CPU is Bay Traill N2930 Quad-Core 1.83GHz, SoC chipset, and 4GB DDR3L 1600MHz memory, delivering high performance with immense storage. It includes one full size internal mini-PCIe slot. The connectors consist of 2 COM, USB 2.0, USB 3.0, 2 Gigabit Ethernet ports (RJ-45), 3-pin DC power input terminal, and 2-pin connector for power on/off button. With the front bezel built of aluminum die-casting and IP65 design, it will ensure durability and resistance to contaminants and liquids yet it will be lightweight. With IP65, it has complete protection from water, up to water projected by a nozzle against enclosure from any direction. The chassis is also of aluminum die-casting. Since it is fanless and built of aluminum, it will dissipate heat which prevents overheating. It will also protect from dust, oil, and other non-corrosive material, especially in a harsh working environment. With a wide range working temperature of 32°F to 122°F and storage temperature of 14°F to 122°F, it can withstand severe weathering. The die-casting material also contributes to the resistance of harsh weathering. The dimension is 11.22”(W) x 7.44”(H) x 1.93”(D). There is an optional for a panel or VESA (100 x 100 mm) mount.
