HMI computer powered by Bay Trail N2930 1.83GHz processor and 7 inch 800 x 480 touch screen, has IP65 rated flat front bezel with rugged aluminum die-casting enclosure and rich of I/O ports.

PC9070

  • PC9070 Back View

PC9070

  • Silver aluminum die-casting chassis
  • Features flat front bezel with IP65 design
  • 7 inch 800 x 480 350-nit industrial display panel
  • Resistive type touch screen monitor
  • Option for projective capacitive type touch screen monitor
  • Bay Trail N2930 1.83GHz fan less embedded computer
  • 9~36V DC power input with AC power adapter

Quick Overview

Ultra compacted and fan less designed HMI PC is a Bay Trail N2930 1.83GHz based embedded PC with 7 inch 800 x 480 touch screen, has IP65 rated flat front panel bezel with rugged die-casting aluminum enclosure.

Material
Solid aluminum die-casting chassis
IP65 compliant front panel

LCD Panel
Size: 7 inch Display
Resolution: 800 x 480
Brightness: 350
Viewing Angle (H/V): 140'(H)/ 110'(V)
Display Color: 262K
Contrast Ratio: 400:1
Backlight Lifetime: 40,000 hrs

Touch Screen
Resistive type touchscreen monitor
Light Transimission: 80%
Interface: USB
Projected capacitive type touchscreen monitor (option)
Light Ransimission: 90%
Interface: USB

System
CPU: Bay Trail N2930 1.83GHz processor
Memory Slot: on board 4GB 1600 MHz DDR-III SODIMM x 1
System Chipset: SoC

Drive Bay
1 x SATA MO-297 SDD bay, Max. 64GB
1 x SD card slot, Max. 32GB

Mounting
Panel mounting / VESA 75 x 75mm

Connectors
1 x RS-232 DB-9
1 x DB-9 RS-232/422/485 (Default RS-232)
2 x USB, 1 for USB 2.0, 1 for USB 3.0
2 x Ethernet ports
1 x Audio port: Line-out
1 x 3-pin terminal block for DC power input
1 x 2-pin connector for power on/off button

Power supply
9~36VDC power input with AC adapter

Weight
2.65lbs

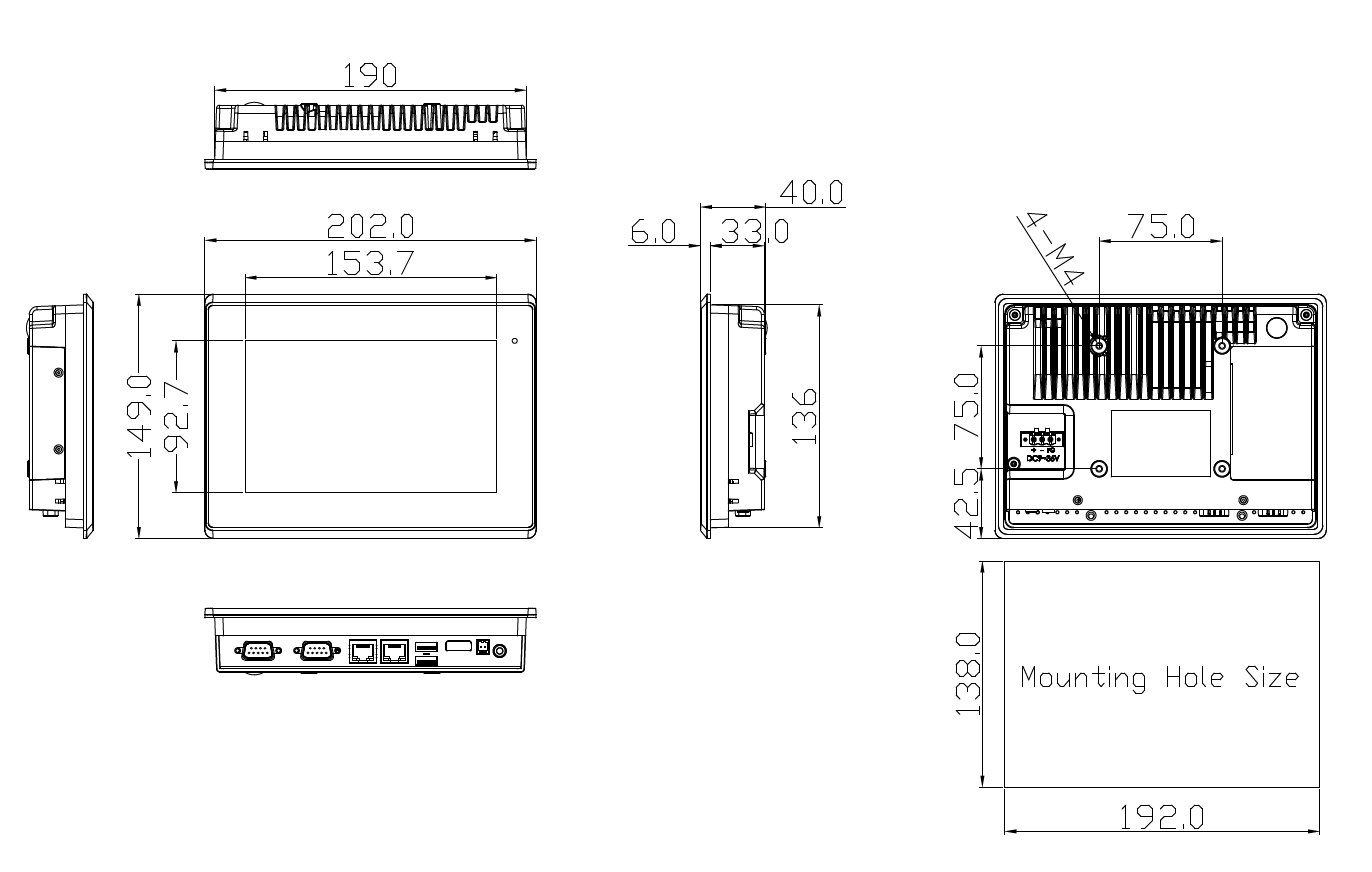

Dimension
7.95" x 5.87" x 1.54

(W) x (H) x (D)

Certification
CE/ FCC Class A

Environmental
Environment Temperature
Operating: 0 to 50 degree C
Storage: -20 to 60 degree C
Relative Humidity: 10%-90% @ 40 degree C, non-condensing

PC 9070
7 inch 800 x 480 industrial touch Panel PC comes with resistive-type touch screen, IP65 rated enclosure, Bay Trail 1.83GHz processor, 4GB DDR3 memory. Option for projective capacitive touch.

Price start from: $860.00


  • Panel PC Atom N2930 1.83GHz fan less embedded computer
    7" 800 x 480 resistive type touch screen monitor
    Option for projected capacitive type touch screen
    On board 4GB DDR3 memory
    1 x 1.8 inch half size SSD
    IP65 rated flat front bezel
    Die-casting aluminum chassis
    9 to 36 DC power input with AC adapter
    Panel / VESA mount ready
    Starting at: $860.00

PC9070

$860.00

* Required Fields

Document Description Download Link
file icon PC9070-SP.pdf Spec Sheet
file icon PC9XXX-UM.pdf User Manual
