Industrial monitor with a 17 inch 1280 x 1024 resistive type touchscreen display, VGA + DVI + HDMI + DP video input, and panel or VESA (100mm) mounting holes. The monitor features an aluminum die-casting chassis and IP66 rated waterproof flat front bezel. Option for Projected Capacitive type touch screen and 1000-nits high brightness.
10.1

APA9101

21.5

APA9215

APA9170

  • Aluminum die-casting chassis
  • Features flat front bezel with IP66 design
  • 17 inch 1280 x 1024 Resistive type touch screen monitor
  • 2.55" short depth metal rugged construction
  • Option for Projected Capacitive type touch screen
  • VGA, DVI, HDMI, and DP video input
  • Panel or VESA (100mm) mount ready
  • 9 to 36V DC power input w/ external AC power adapter
$987.00
Availability: In stock
SKU
APA9170
17" 1280 x 1024 resistive type touchscreen monitor with VGA + DVI + HDMI + DP video input, IP66 rated flat front bezel, and 9 to 36V DC power input with external AC power adapter.
Material
Solid aluminum die-casting chassis
IP66 compliant flat front panel
LCD Panel
Size: 17 inch
Max Resolution: 1280 x 1024
Brightness (cd/m²): 350, option for 1000-nit
Contrast Ratio (typ) : 1000:1
Viewing Angle (H/V): 170° x 160°
Colors: 16.2M
MTBF (hrs): 30,000
Video input
1 x VGA
1 x DP
1 x DVI-D (share with HDMI)
1 x HDMI (share with DVI-D)
Touch screen
Resistive type touch screen monitor with USB port (std)
Option for Projected Capacitive type touch screen monitor with USB port
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Panel mount or VESA (100mm) mount
Connectors
1 x VGA port
1 x DP port
1 x DVI-D port (share with HDMI)
1 x HDMI port (share with DVI-D)
1 x USB Type B for touchscreen
1 x 3-pin terminal block DC power input
1 x 2W speaker (option)
Power supply
Power Input: 9~36V DC power input with external AC power adapter
Power Consumption: Max. 11W
Weight
13.23 lb / 6 kg

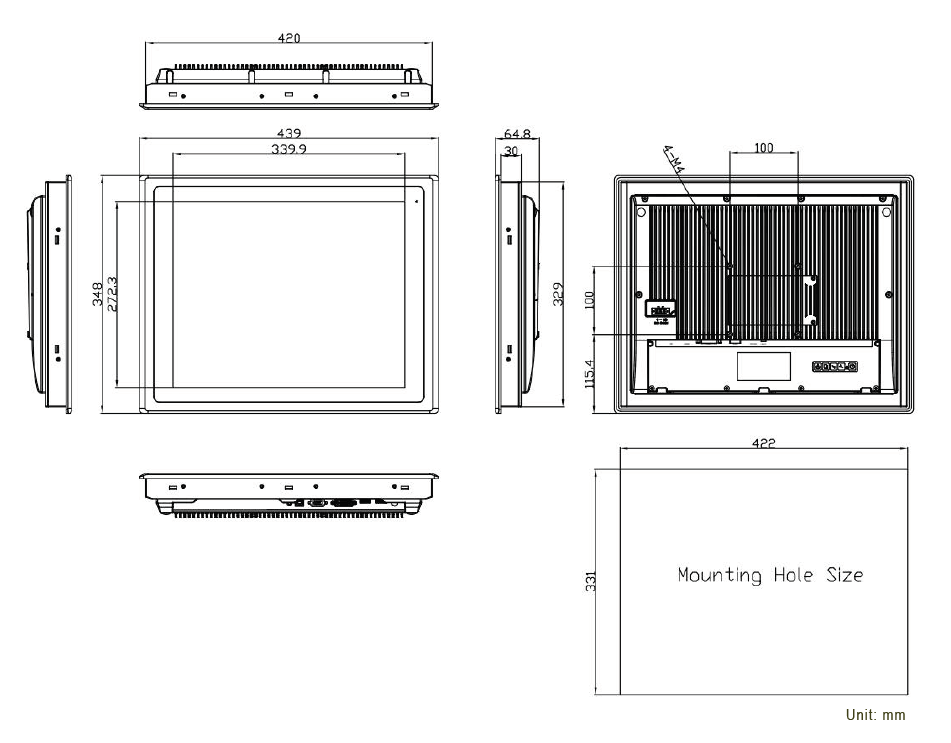

Dimension
17.28"(W) x 13.70"(H) x 2.55"(D)
Environmental
Operating Temperautre: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10~90% @ 40°C, non-condensing
Certification
CE/FCC, Class A

APA9170:
17 inch 1280 x 1024 resistive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input with external AC power adapter.

APA9170P:
17 inch 1280 x 1024 projected capacitive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input with external AC power adapter.

Document
Description
Download Link
file iconAPA9170-SP(V1-2-1).pdf
Spec Sheet
file iconAPA9170-UM(V1-2).pdf
User Manual
