The APH8170 is a 17" high brightness sunlight readable monitor supporting 1280 x 1024 resolution, 1000-nits high brightness display, and VGA + DVI-D video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, a sunlight-readable display, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APH8170 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology (Resistive or Projected Capacitive touch screen), auto or manual dimming, additional video signals, MCS multi-screen control, and DC power input.
Loading...
19

APH8190

APH8170

  • 17" high brightness industrial LCD monitor
  • Supports 1280 x 1024 native resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + DVI-D video input
  • Option for HDMI, BNC, Audio, 3G-SDI, or MCS control
  • Option for Resistive or PCAP touch screen - USB
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,174.00
Availability: In stock
SKU
APH8170
Email
17" sunlight readable display with 1280 x 1024 resolution, VGA + DVI-D input, panel or VESA (100mm) mount, 100/240VAC power input, and an aluminum front bezel.
Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65/NEMA4 rated front bezel
LCD Panel
Size: 17 inch
Native Resolution: 1280 x 1024
Brightness (cd/m²): 1000
Contrast Ratio (typ): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.264
Display Area (mm): 337.92H x 270.33V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness; 3H
Backlight Type: LED
MTBF (hrs): 50,000
Video Input
Standard: VGA + DVI-D
Option: HDMI, BNC, 3G-SDI input, or MCS multi-display control
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
Dimming (Option)
Auto dimming or Dimming switch with IP54 protection
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter
1 x Power cord
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 30W, Standby 4W
Option for 12V / 24V / 48V / 125V DC power input
Weight
14.5 lb / 6.6 kg

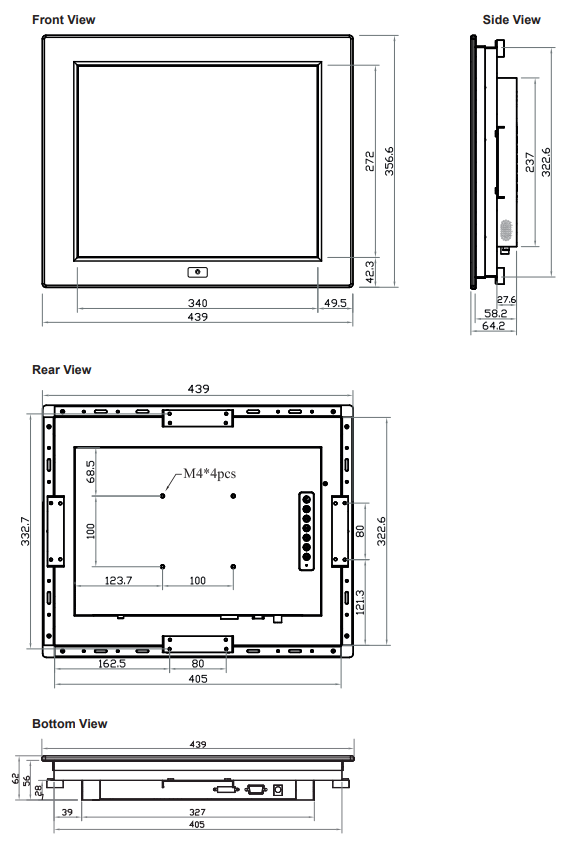

Dimension
17.3"(W) x 2.5"(D) x 14"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Complaince
CE, FCC, RoHS, TAA Compliant

APH8170:
17" high brightness panel mount LCD monitor, 1280 x 1024 native resolution, 1000-nits high brightness panel, VGA + DVI-D video input, VESA (100 x 100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPH8170-SP.pdf
Spec Sheet
file iconAPH8170-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
  • APH8170
    17" high brightness industrial LCD monitor
    Supports 1280 x 1024 native resolution
    1000-nits high brightness sunlight readable display
    VGA + DVI-D video input
    Option for HDMI, BNC, Audio, 3G-SDI, or MCS control
    Option for Resistive or PCAP touch screen - USB
    VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,174.00
APH8170
$1,174.00

PRODUCT DESCRIPTION
The APH8170 is a 17-inch high-brightness industrial monitor supporting a 1000-nit high-brightness display,  LCD LED backlight, and resolution of 1280 x 1024. It is an ideal monitor for outdoor environments or indoors in high-ambient-light conditions. The contrast ratio of 1000:1 along with a viewing angle of 170° x 160° supports a clear image quality of the 337.32 x 270.33 mm active area. With 16.7 million colors, it displays intricate details. The mean time between failures of 50,000 hours ensures it is long-lasting. The option for resistive, capacitive, or projective capacitive type touch screen with a USB port is available for added protection and easy activation. The video input supports VGA and DVI-D with options for HDMI, DP, Audio, 3G/HD/SD-SDI input, and remote control. The power supply uses external auto-sensing 100 to 240VAC, 50/60Hz power adapter with the option for 12V / 24V / 48V / 125V DC power supply. On the OSD menu, it controls the OSD membrane switch for brightness, contrast, phase and clock, color, H & V position, and auto-tune. There is an option for MCS multi-display OSD menu control including an RS-232 link port and two RJ-45 in/out ports, cascading up to 64 monitors. The unit is built of rugged heavy-duty metal construction with a 6mm aluminum front bezel. The durability of the material is complemented by anti-shock and anti-vibration features. The shock-resistant is at 10G acceleration and vibration resistance at 5~500Hz 1G RMS. The relative humidity can withstand 5~90%, non-condensing. The 12.1lb monitor has a dimension of 17.3” (W) x 14” (H) x 2.5” (D) and is a panel or VESA mount ready.
