Rackmount console drawer with a 17.3 inch 3840 x 2160 4K UHD industrial LCD monitor, HDMI + DP + DVI inputs, keyboard with touchpad, IP22 rated fanless design, and a 1U high 19.69 inch depth chassis. Option for a 12VDC power input with MIL-type connector or 9 to 36VDC power input with or without D38999 connector.
17 inch monitor keyboard drawer - front view

KD9150H

KD81174 1U 17

KD81174

KD80174

  • 17.3" 4K rack LCD console drawer
  • Supports 3840 x 2160 native resolution
  • HDMI 1.4 + HDMI 2.0 + DP1.2 + DVI input
  • 104-key keyboard with touchpad
  • Front OSD (On Screen Display) function
  • IP22 rated fanless design
  • 1U high 19.69" (500mm) depth drawer design
  • 12V DC power input with external power adapter
  • Option for MIL-type connector or 9 to 36V DC power input
$1,940.00
Availability: In stock
SKU
KD80174
17.3 inch 3840 x 2160 4K UHD LCD with HDMI + DP + DVI, IP22 rated fanless design, keyboard with touchpad, and a 1U high 19.69 inch depth rackmount drawer.
Material
IP22 rated fanless design
LCD Panel
Size: 17.3 inch
Resolution: 3840 x 2160
Brightness: 400-nit
Contrast Ratio: 1000 : 1
Active Area (mm): 382.12(H) x 214.94(V)
Pixel Pitch (mm): 0.0995(H) x 0.0995(V)
Viewing Angle: 178°(H) and 178°(V)
Backlights: LED
Colors: 16.7M
Video input
HDMI + DP + DVI input
Keyboard & Keypad
104-key keyboard and touchpad
OSD (On-Screen Display)
OSD Input: 5-key OSD control buttons
OSD Function: PIP, Contrast, Color, Position, Auto-adjustment, Factory Settings
Power Supply
Input: 12V DC power input with external power adapter
Power consumption: 50W (typ.)
Option for:
(1) 12VDC with MIL-type connector and external power adapter
(2) 9 to 36VDC power input
(3) 9 to 36VDC power input with D38999 connector
Connector
1 x HDMI 1.4 Input
1 x HDMI 2.0 Input
1 x DP 1.2 Input
1 x DVI Input
1 x 12V DC input (Terminal Block)
Weight
17.64 lb / 8 kg

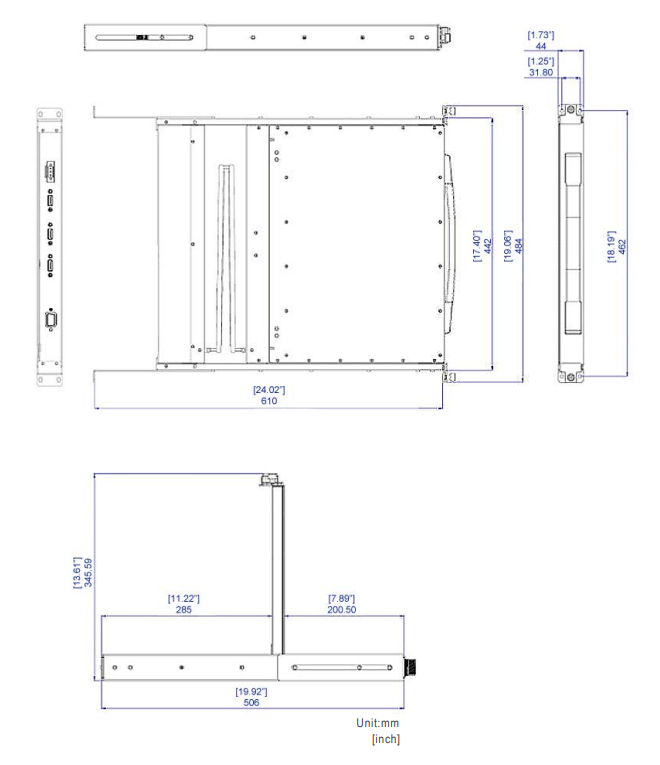

Dimension
19.06"(W) x 19.69”(D) x 1.73"(H)
Environmental
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Relative Humidity: 10-95%, non-condensing

KD80174:
17.3 inch 3840 x 2160 4K industrial LCD monitor, HDMI + DP + DVI input, IP22 rated fanless design, 12V DC power input with external power adapter, 1U high 19.69 inch depth rackmount terminal, Black color. Option for a 12VDC power input with MIL-type connector or 9 to 36VDC power input with or without D38999 connector.
Lead Time: 6 to 8 weeks

Document
Description
Download Link
file iconKD80174-SP(V1-2).pdf
Spec Sheet
