The KD8121 is a 21.5" Full HD rack LCD console drawer supporting 1920 x 1080 native resolution, VGA + DVI-D input, and a LED touch on-screen display (OSD) that allows users a convenient way to control device settings. The 1U LCD drawer is integrated with a 104-key keyboard with a 2-button touchpad and features a side-open design for different installation environments.
Loading...
1U 20

KD8220

1U 24

KD8124

KD8121

  • 21.5" Full HD rackmount LCD console drawer
  • Supports 1920 x 1080 native resolution
  • VGA + DVI-D video input
  • Option for HDMI, Audio, BNC, S-Video, or 3G-SDI input
  • 104-key keyboard with touchpad or trackball
  • Left or right side drawer open design
  • 1U high 26.4" (670mm) depth drawer design
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,221.00
Availability: In stock
SKU
KD8121
Email
21.5" 1920 x 1080 Full HD rackmount LCD console with VGA + DVI-D video input in a 1U high 26.4" depth rackmount pull-out drawer with slide access design.
Material
Heavy-duty steel
LCD Monitor
Size: 21.5 inch
Native Resolution: 1920 x 1080
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.248
Display Area (mm): 476.64H x 268.11V
Surface Treatment: Haze 25%, Hard-coasting
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Keyboard & Pointing Device
104-key keyboard with 2-button touchpad - USB port
Option for keyboard with trackball or SUN keys
Video Input
VGA + DVI-D video input
Option for HDMI, Audio, DP, BNC + S-Video, Front USB Hub, or 3G-SDI
Integrated KVM (Option)
Integrated KVM switch is only available upon request
Option for VGA KVM, USB Hub VGA KVM, DVI-D KVM, Cat6 KVM, or Matrix Cat6 KVM integration
Drawer Design
Pull-out drawer with side access design
KD8121: Left side open
KD8121R: Right side open
Mounting Distance
24.8 ~ 33.9 inch (630 ~ 860 mm)
Cable
1 x 6ft DVI-D USB console cable included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 28W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
32.3 lb / 14.7 kg

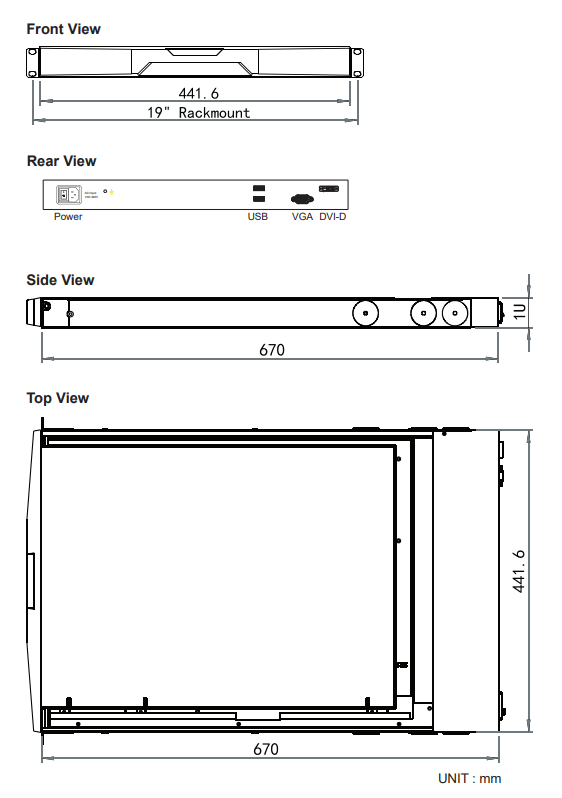

Dimension
17.4"(W) x 26.4"(D) x 1.73"(H)
* All dimensions stated are subject to change if options are selected / integrated to base model
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

KD8121:
21.5" Full HD rack console drawer, 1920 x 1080 native resolution, left side open, 104-key keyboard with touchpad, VGA + DVI-D video input, 1U 26.4" depth rack drawer, Black color.

KD8121R:
21.5" Full HD rack console drawer, 1920 x 1080 native resolution, right side open, 104-key keyboard with touchpad, VGA + DVI-D video input, 1U 26.4" depth rack drawer, Black color.

Document
Description
Download Link
file iconKD8121-SP.pdf
Spec Sheet
file iconKD8121-UM.pdf
User Manual
  • KD8121
    21.5" Full HD rackmount LCD console drawer
    Supports 1920 x 1080 native resolution
    VGA + DVI-D video input
    Option for HDMI, Audio, BNC, S-Video, or 3G-SDI input
    104-key keyboard with touchpad or trackball
    Left or right side drawer open design
    1U high 26.4" (670mm) depth drawer design
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
