The KD80274 is a 27" rack LCD console drawer with 3840 x 2160 4K UHD resolution, VGA + DVI + HDMI + DP input, keyboard with touchpad, and a 1U high 23.4" depth rackmount drawer with slide access design. The rack console is designed with heavy-duty steel housing for industrial applications and data centers.
1U 24

KD8124

1U 23

KD82234

KD80274

  • 27" 4K rackmount LCD console drawer
  • Supports 3840 x 2160 display resolution
  • Front OSD (on-screen display) functions
  • VGA + DVI-D + HDMI + Display Port input
  • Option for 2 x 2W speakers
  • Keyboard with touchpad pointing device
  • Pull-out drawer with side access design
  • 1U high 28.4" (721mm) depth drawer design
  • 12V DC power input with external power adapter
$2,496.00
Availability: In stock
SKU
KD80274
27" 3840 x 2160 4K UHD LCD with VGA + DVI-D + HDMI + DP video inputs and keyboard with touchpad in a 1U high 28.38 inch depth pull-out drawer with slide access design.
Material
Heavy-duty steel
LCD monitor
Size: 27 inch
Resolution: 3840 x 2160
Brightness (cd/m²): 400
Contrast Ratio (typ.): 1000: 1
Active Area (mm): 596.16(H) x 335.34(V)
Pixel Pitch (mm): 155.25(H) x 155.25(V)
Viewing Angle (H/V): 178° x 178°
Response Time (typ.): 12 m sec.
Backlight: LED
Colors: 1.07B
Keyboard & Touchpad
Keyboard with touchpad pointing device
Video input
VGA + DVI-D + HDMI + Display Port
Speaker (Option)
2 x 2W speakers
OSD (On Screen Display)
OSD Input: 4-key OSD control buttons
OSD Function: Contrast, Color, Position, Auto-adjustment, Factory Settings
Drawer Design
Pull-out drawer with side access design
Front I/O
1 x HDMI, up to 3840x2160@60Hz
1 x Display Port, up to 3840x2160@60Hz
Rear I/O
1 x VGA, up to 1920x1080@60GHz
1 x DVI-D, up to 3840x2160@60GHz
1 x HDMI, up to 1920x1080@60GHz
1 x DC input
Power supply
Input: 12V DC power input with external AC to DC power adapter
Power Consumption: 85W (typ.)
Power Cord: 1 x Power Cord
Weight
40 lb / 18.14 kg

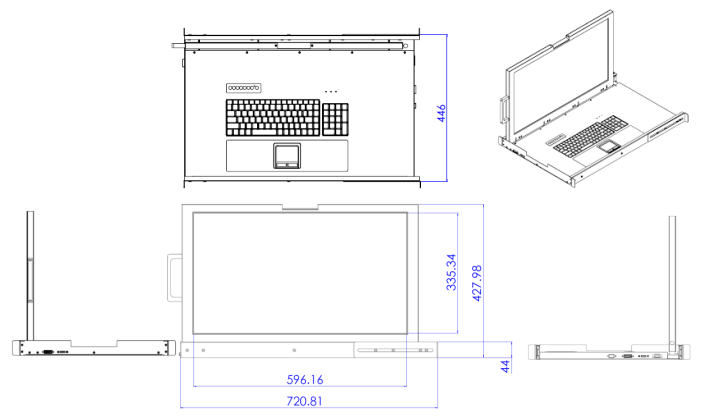

Dimension
17.56"(W) x 28.4"(D) x 1.73"(H)
Environmental
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 10~95% (non-condensing)

KD80274:
1U LCD rack console drawer, 27" 3840 x 2160 UHD LCD monitor, keyboard with touchpad, VGA + DVI-D + HDMI + DP input, 12V DC power input w/ external power adapter, pull-out drawer with slide access design, 1U high 23.4 inch depth rackmount terminal, Black color.

Document
Description
Download Link
file iconKD80274-SP.pdf
Spec Sheet
