The KDW8190 is a 19" rack LCD console drawer supporting 1440 x 800 native resolution, VGA + DVI-D video input, and a 104-key keyboard with a touchpad in a 1U high 18.1" short-depth rack drawer. The console features a modeled front handle for easy access and a front LED touch OSD, providing users with a convenient way to control device settings.
1U 19

KD8190

KDN9192 1U 19

KDN9192

KDW8190

  • 19" widescreen rack LCD console drawer
  • Supports 1440 x 900 native resolution
  • VGA video input
  • 104-key keyboard with touchpad or trackball
  • Option for HDMI, BNC, or 3G-SDI input
  • Short-depth drawer design of 18.1" (460mm)
  • Auto-sensing 100 to 240VAC, 50/60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,058.00
Availability: In stock
SKU
KDW8190

19" 1440 x 900 widescreen rack LCD console with VGA + DVI-D video input and 104-key keyboard with touchpad in a 1U high 18.1" short depth rackmount drawer.

Material
Heavy-duty steel
LCD monitor
Size: 19 inch
Native Resolution: 1440 x 900
Brightness (cd/m²): 250
Contrast Ratio (typ): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.2835
Display Area (mm): 408.24H x 255.15V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Keyboard & Touchpad
104-key keyboard with 2-button touchpad - USB port
Option for keyboard with trackball or SUN keys
Video input
VGA + DVI-D video input
Option HDMI, Audio, BNC, front USB hub, or 3G-SDI input
Mounting Distance
18.5 ~ 27.6 inch (470 ~ 700 mm)
Cable
1 x 6ft DVI-D USB console cable included
Power supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 20 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Color
Black (RAL 9005)
Weight
25.3 lb / 11.5 kg

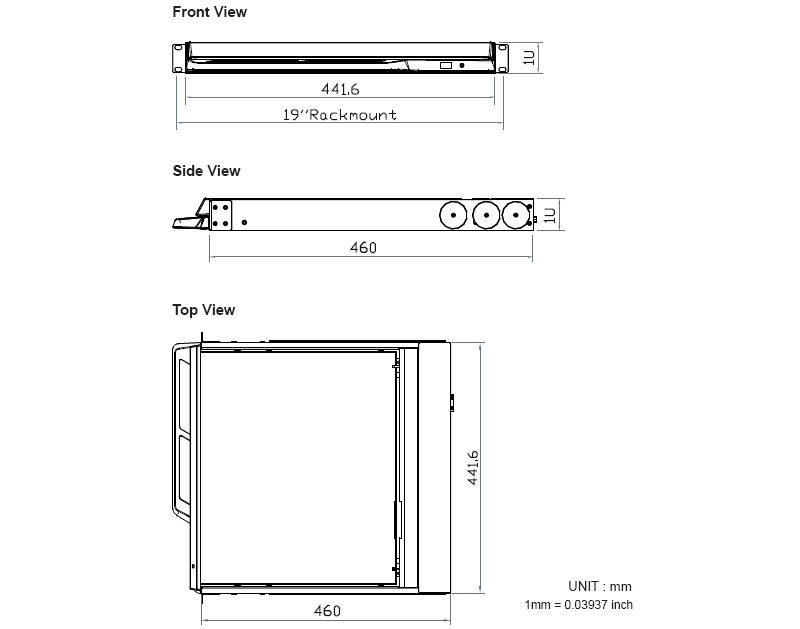

Dimension
17.4"(W) x 18.1"(D) x 1.73"(H)
* All dimensions stated are subject to change if options are selected / integrated to base model
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
FCC, CE, RoHS, TAA Compliant

KDW8190:
1U 19" rack LCD console drawer, 1440 x 900 native resolution, VGA + DVI-D video input, 104-key keyboard with touchpad, 1U high 18.1" depth rackmount terminal, Black color.

Document
Description
Download Link
file iconKDW8190-SP.pdf
Spec Sheet
file iconKDW8190-INST.pdf
Installation Guide
file iconKDW8190-UM.pdf
User Manual
