Industrial computer integrated i7 / i5 / i3 multiple core CPU into a compact and rugged enclosure with an -30°C ~ 60°C extended working temperature. has VGA + DVI dual input and 12VDC power input with RTC alarm power on function. It mounted securely with integrated mounting bracket for automation control applications.
Loading...
FES7035 Front View

FES7035

FES2924 industrial PC

FES2924

FES5312

  • Aluminum alloy rugged micro box
  • Fan less embedded system
  • 4-core or 2-core i7 / i5 / i3 Processor
  • Extended working temperature range from -30°C to 60°
  • Dual display port (VGA + DVI)
  • Dual LAN and 5 COM port
  • 1 x PCI express by 16 expansion slot, option for 1 mini PCI-E slot
  • 1 internal 2.5 inch HD and 1 external 2.5 inch HD
  • 90 ~ 264 VAC power input with RTC alarm power on
$1,485.00
Availability: In stock
SKU
FES5312
Email
Fan less embedded computer with Core i7 / i5 / i3 multiple core CPU, Dual display (VGA + DVI), 5 COM port, DC power input and 1 x PCI express by 16 expansion slot. has rugged aluminum chassis and extended -30 to 60 degree C working temperature.
Construction
Rugged aluminum and SECC steel enclosure
Embedded board
CPU Type:
4-core 8 thread i7 2.1GHz 6MB Cache processor/
2-core 4 thread i5 2.5GHz 3MB Cache processor/
2-core 4 thread i3 2.2GHz 3MB Cache processor
Chipset: QM67 south bridge chipset
Memory: DDR-III SODIMM x 2, Max. 16 GB
Watchdog time: programmable WDT from 1 to 255 seconds
Graphic
Support AVC/H.264, VC1/ WMV9, MPEG2 HW engine
Support DirectX video acceleration (DXVA) engine
Video input
Dual Video input: VGA & DVI for independent video outputs
option for DVI + LVDS or VGA + LVDS dual independent display
Expansion slot
1 PCI Ex16 expansion slot, 1 option for mini PCI-E slot
Max. add-on card dimension: 7.08"(L) x 4.2"(H)
Drive bay
1 x internal hot-swappable 2.5 inch SATA hard drive or SSD
1 x external hot-swappable 2.5 inch SATA hard drives
HDD with optional anti-vibration protection
Support eSATA for external SATA device and CF socket
Front panel control
LED indicator for power and hard drive
Power on/off and system reset buttons
I/O Port (standard)
5 x COM port, 2 for RS-232/422/485, 3 for RS-232
6 x USB2.0
2 x Ethernet ports, 100/1000Base-TX
3 x Audio port: Line-in, Line-out, Mic-in
2 x PS/2 port for Keyboard and mouse
1 x DB-44 dual channel 24 bit LVDS (option)
Active Management Technology
Support iAMT 7.0
Remote troubleshooting and recovery
Power supply
AC 90 ~ 264 input with RTC alarm power on function
Support power core lock protection
DC 12V / 8.5A 102W power input (Option)
Power adapter: AC to DC 12V 60/100W or 24V 60W (Option)
System Support
Windows XP, Professional / Embedded Linux, Windows 7
Mounting
Integrated mounting bracket for Desk or Wall mount
Optional support vertical

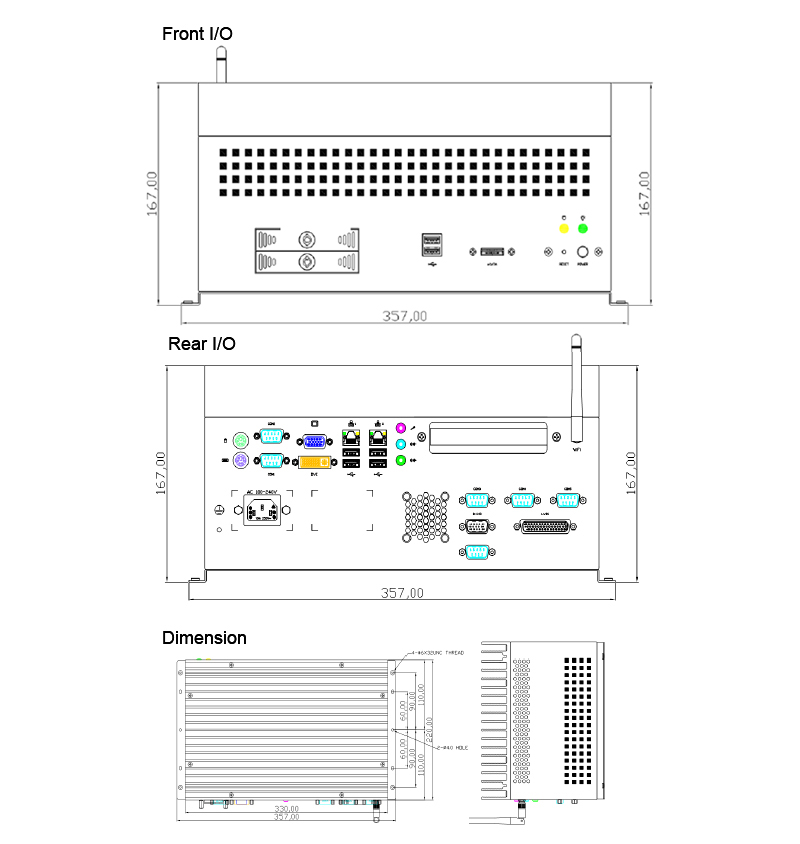

Dimension
12.99"(W) x 6.61"(H) x 9.66"(D)
Weight
17.6lb
Environmental
Operating Temperature: -30°C ~ 55°C (i7 CPU)/ -30°C ~ 60°C (i5/i3 CPU)
Storage Temperature: -40°C to 80 °C
Humidity: 10~90%, non-condensing
Vibration: 5~500Hz 2G RMS random vibration, 1hr/axis (CF/SSD) or 5~500Hz 1G RMS random vibration, 1hr/axis (HDD)
Shock: trucks and semitrailers 20g
Certification
CE / FCC Class A

FES 5312
Fanless embedded system, i7/i5/i3 multiple Core CPU, up to 16GB DDR-III memory, 1 internal 2.5 inch SATA HD, 1 external 2.5 inch SATA HD, 1 PCI Ex16 expansion slots, dual display (VGA + DVI). Desk or Wall mount ready.

Price:$1,485 .00

Document
Description
Download Link
file iconFES5312-DATA.pdf
Data Sheet
file iconFES5312-DIM.pdf
Dimension
file iconFES5312-UM.pdf
User Manual
  • FES5312
    Fan less embedded computer
    Core i3-2330E 2.2GHz CPU
    Option for Core i5-2510QE 2.6GHz and Core i7-2710QE 2.1GHz CPU
    2GB SODIM memory up to 16GB
    250GB hard drive and 1 x external HD bay
    Dual DVI + VGA video out ports
    5 COM ports
    1 PCI express by 16 expansion slots
    Integrated mounting bracket
    Steel case with aluminum heat sink
    12VDC power input option for AC adapter
    -30 to 60 degree C working Temp
    Starting at:
    $1,485.00
FES5312
$1,485.00

Construction

Onboard system
  The embedded system is powered by 4-core or 2-core i7 / 75 / i3 processor with an extended operating temperature range of -30°C ~ 60°C. The Core i7 / i5 / i3 processor and high performance graphic engine are more than capable of driving HD media, and the dual video ports (VGA + DVI) support independent video outputs. Dual Gb LAN, five COM ports, six USB 2.0 ports. Wireless connectivity is supported via the PCIe Mini Card slot.
Storage Device
The system comes with 1 x internal hot-swappable 2.5 inch SATA HD and 1 x external hot-swappable 2.5 inch SATA HD.

Expansion Slots
We provide 1 PCI Ex16 slot and an optional mini PCI-E slot for the expansion.
Power Supply
The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 90V ~ 264VAC power supply with RTC alarm power on function
Mounting
The integrated mounting brackets make the system easy to mount securely and out of the way for embedded computer applications.

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.

Core i7 Processor-Based Fanless Embedded Computer with PCIe x16 Expansion Slot
Based on Mobile QM67 Express Chipset, FES5312 and FES5313 are powered by 2nd Generation quad- or dual-core i7/i5/i3 CPU and serve in environments prone to shock, vibration, humidity, and temperatures from -22 to 140°F. Along with up to 16GB DDR3 memory, FES531X series includes 6 USB 2.0 ports, dual 100/1000T(X) Ethernet LAN ports, 2/3 SATA interface, 5 COM ports, and 1 PCIe x16 slot for expansion.
