Industrial computer integrated Atom D2550 1.86GHz CPU into a compact and rugged enclosure with an -20°C ~ 60°C extended working temperature, has dual DVI-D video output and 12V DC power input with AT or ATX function. It mounted securely with integrated mounting bracket for automation control applications.
Loading...
FES2217

FES2217

FES2236

FES2236

FES2230

  • Aluminum alloy rugged micro box
  • Fan less embedded system
  • Atom D2550 Dual-Core 1.86GHz Processor
  • Extended working temperature range from -20°C to 60°
  • Dual display port (DVI-I + DVI-D)
  • Dual LAN and 4 COM port
  • 1 PCI-104 slot & 2 mini PCI express expansion slots
  • 12 VDC power input with AT or ATX function
$785.00
Availability: In stock
SKU
FES2230
Email
Fan less embedded computer with Atom D2550 Dual-Core 1.86GHz CPU, dual video ports (DVI-I and DVI-D) and 4 COM port, has 1 PCI-104 and 2 Mini PCI Express expansion slot, rugged aluminum chassis and extended -20 to 60 degree C working temperature.
Construction
Rugged aluminum enclosure
Embedded board
CPU Type: Atom D2550 1.86GHz Dual Core fan less processor
Chip set: NM10 south bridge chipset
Memory: 1 x DDR-III SODIMM socket, Max. 4 GB
Watchdog time: programmable WDT from 1 to 255 seconds
Dual Ethernet ports realtek 100/1000Mbps LAN with wake on LAN and DMI
Audio: ALC662 HD codec support
Graphic
Intel graphic Core 640Mhz
Support AVC/H.264, VC!/ WMV9, MPEG2 HW engine and blue-ray
Support HDCP 1.3 and PAVP 1.1C content protection
Support DXVA 2.0, Overlay DO, MS COPP and PVP-OPM
Support OpenGL 3.0 and DirectX 9
Enabling key ISVs-Core, Cyberlink and ArcSoft
Video input
Dual Video input: DVI-I and DVI-D for independent video outputs
support 1920x 1200 and 1080P display resolution
Expansion slot
1 x PCI-104 expansion module
2 x mini PCI-Express for wireless 802.11 b/g/n LAN card
Drive bay
1 x 2.5 inch drive bay for SATA hard drive or SSD
1 x mSATA will occupy one mini PCI express slot
Front panel control
LED indicator for power and hard drive
Power on/off and system reset buttons
I/O Port (standard)
4 x COM port, 2 for RS-232/422/485, 2 for RS-232
4 x USB2.0
2 x RJ-45 Ethernet ports, 100/1000Base-TX
2 x Audio port: Line-out, Mic-in
I/O ports (option)
2 x DB-9/15
1 x 8 bit GPIO with TTL level
Power supply
6V to 34VDC input with AT / ATX function
12 VDC / 1.7A, 24VDC / 0.85A
Power adapter: AC to DC, DC 12V 60W
Power consumption (with HD): typical 17W, Max 22W
System Support
Windows XP, Linux, Windows 7
Mounting
Integrated mounting bracket for Desk or Wall mount
Dimension
7.87"(W) x 3.41"(H) x 5.26"(D)
Weight
4.4 lb
Environmental
Operating Temperature: -20 °C ~ 60°C (SSD)/ -20°C ~ 60°C (HD)
Storage Temperature: -40°C to 85 °C
Humidity: 10~90%, non-condensing
Vibration: 10~500Hz 2G RMS random vibration, 3 axes
Shock: 50G RMS, 11 ms duration
Certification
CE / FCC Class A

FES 2230
Fan less embedded system, Atom D2550 Dual Core 1.86GHz CPU, up to 4GB DDR-III memory, 2.5” HDD drive bay, dual LAN, 4 COM ports, 1 x PCI-104 slot, 2 x mini PCI Express expansion slots, dual display (DVI-I + DVI-D). Desk or Wall mount ready.

Price:$785 .00

Document
Description
Download Link
file iconFES2230-DATA.pdf
Data Sheet

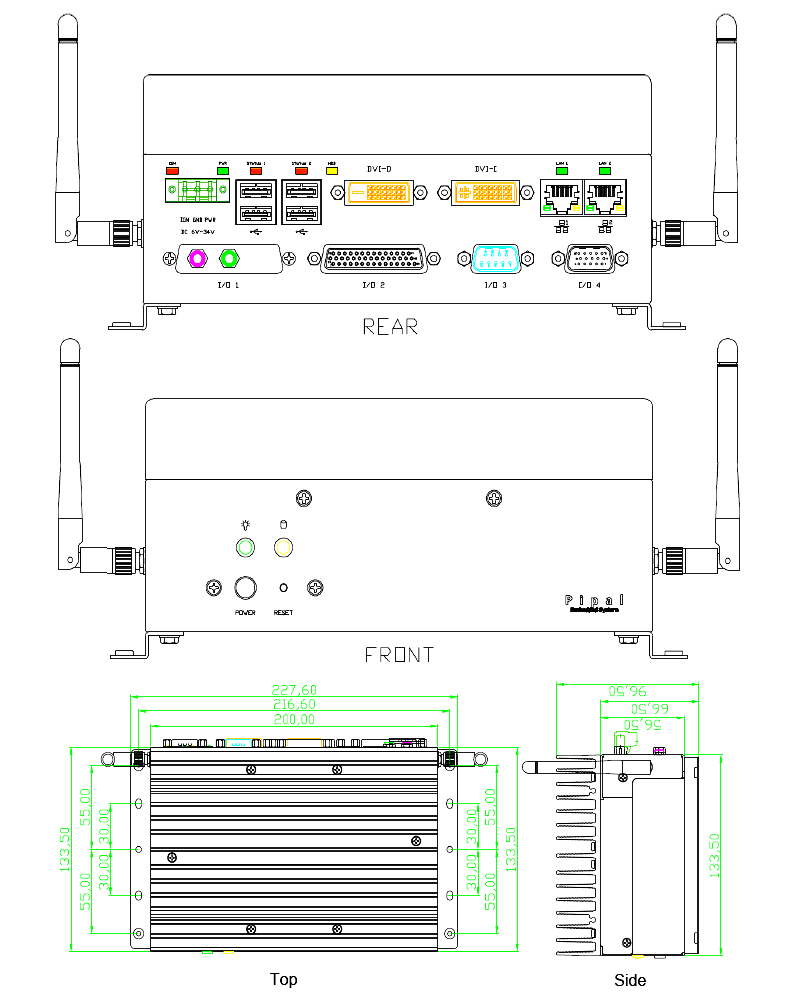

file iconFES2230-DIM.pdf
Dimension
file iconFES2230-UM.pdf
User Manual
  • FES2230
    Fan less embedded computer
    Atom D2550 1.86GHz Dual-Core CPU
    2GB SODIM memory
    250GB hard drive
    Dual DVI video out port
    wall mount ready
    Steel case with aluminum heat sink
    12VDC power input option for AC adapter
    -20 to 60 degree C working Temp
    Starting at:
    $785.00
FES2230
$785.00

Construction

On board system
  The embedded system is powered by Atom D2550 Dual Core 1.86GHz processor with an extended operating temperature range of -20°C ~ 60°C. The 1.86 GHz D2550 processor and graphic Core 640 MHz are more than capable of driving HD media, and the dual video ports (DVI-I + DVI-D) support independent video outputs. Dual Gb LAN, four COM ports, four USB 2.0 ports. Wireless connectivity is supported via the PCIe Mini Card slot .
Storage Device
The system comes with a standard 2.5 inch SATA HD.

Expansion Slots
We provide 1 x PCI-104 slot and 2 x mini PCI-E slot  for the expansion.
Power Supply
The fan less industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 6VDC to 34VDC power supply with ATX power function.
Mounting
The integrated mounting brackets make the system easy to mount securely and out of the way for embedded computer applications.

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.
