Industrial PC integrated Atom D2550 1.86GHz CPU into a compact and rugged enclosure with an -20°C ~ 60°C extended working temperature. has VGA with HDMI dual input and 12V or 24V DC power input with RTC alarm power on function. It mounted securely with integrated mounting bracket for automation control applications.
Aluminum alloy rugged micro box
Fan less embedded system
Atom D2550 Dual-Core 1.86GHz Processor
Extended working temperature range from -20°C to 60°
Dual display port (VGA + HDMI)
Dual LAN and 4 COM port
1 x mini PCI-E expansion slots
12 or 24 VDC power input with RTC alarm power on
Fan less embedded computer with Atom D2550 Dual-Core 1.86GHz CPU, Dual display (VGA and HDMI), 3 COM port and 1Mini PCI Express expansion slot. has rugged aluminum chassis and extended -20 to 60 degree C working temperature.
Embedded board CPU Type: Atom D2550 1.86GHz Dual Core fan less processor Chip set: NM10 south bridge chipset Memory: 2 x DDR-III SODIMM socket, Max. 4 GB Watchdog time: programmable WDT from 1 to 255 seconds Graphic Intel graphic Core 640Mhz Support AVC/H.264, VC!/ WMV9, MPEG2 HW engine and blue-ray Support HDCP 1.3 and PAVP 1.1C content protection Support DXVA 2.0, Overlay DO, MS COPP and PVP-OPM Support OpenGL 3.0 and DirectX 9 Enabiling key ISVs-Core, Cyberlink and ArcSoft
Video input Dual Video input: VGA and HDMI for independent video outputs support 1920x 1200 and 1080P display resolution
Expansion slot 1 x mini PCI-Express for wireless 802.11 b/g/n LAN card
Drive bay 1 x 2.5 inch drive bay for SATA hard drive or SSD Front panel control LED indicator for power and hard drive Power on/off and system reset buttons I/O Port (standard) 3 x COM port, 2 for RS-232/422/485, 1 for RS-232 4 x USB2.0 2 x RJ-45 Ethermnat ports, 100/1000Base-TX 2 x Audio port: Line-out, Mic-in 2 x PS/2 port for Keyboard and mouse
I/O ports (option) 3 RS 232 COM port or 2 x RS 232 COM port with 1 x digital I/O 1 x DB-25 for LPT port
Power supply DC 12V or 24V input with RTC alarm power on function 12 VDC/2.5A, 24VDC/1.25A, AT / ATX power type Power adapter: AC to DC, DC 12V or 24V 60W (Option) Power consumption (with HD): typical 17W, Max 22W
System Support Windows XP, Linux, Windows 7
Mounting Integrated mounting bracket for Desk or Wall mount

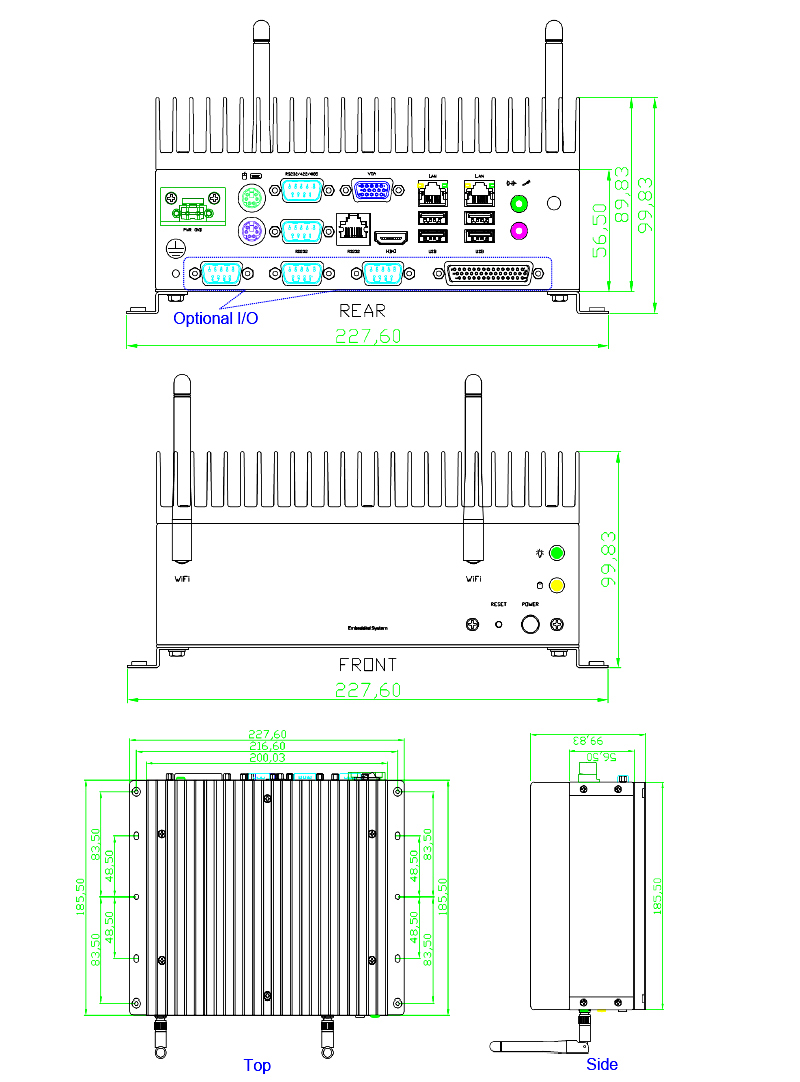

Dimension 7.87"(W) x 5.34"(H) x 7.30"(D)
Weight 9.68lb Environmental Temperature Operation: -20 °C ~ 60°C (SSD) -20°C ~ 60°C (HDD) Storage: -40°C to 85 °C Humidity: 10~90%, non-condensing
Certification CE / FCC Class A
FES 2215: Fanless embedded system with Atom D2550 Dual Core 1.86GHz CPU, up to 4GB DDR-III memory, 2.5 inch hard drive and 1 x mini PCI Express expansion slot. Dual display (VGA + HDMI). Desk or Wall mount ready.
Construction Compacted rugged fanless micro box has an aluminum die-casting heatsink and a heavy-duty alloy construction. The small form factor embedded box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.
Onboard system The embedded system is powered by Atom D2550 Dual Core 1.86GHz processor with an extended operating temperature range of -25°C ~ 55°C. The 1.86 GHz D2550 processor and graphic Core 640 Mhz are more than capable of driving HD media, and the dual video ports (VGA + HDMI) support independent video outputs. Dual Gb LAN, three COM ports, four USB 2.0 ports. Wireless connectivity is supported via the PCIe Mini Card slo .
Storage Device The system comes with a standard 2.5 inch SATA HD.
Expansion Slots We provide 1 x mini PCI-E slot for the expansion.
Power Supply The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 12VDC or 24VDC power supply with ATX power function.
Mounting The integrated mounting brackets make the system easy to mount securely and out of the way for embedded computer applications.
