Military grade embedded PC integrated 6th generation Skylake Core i7-6600U 2.6GHz CPU into a fully IP67 rated rugged enclosure and connector with an -20°C ~ 60°C extended working temperature.

FES9280

FES9280

  • Fully IP67 rated fanless embedded micro box
  • 6th generation Skylake Core i7-6600U 2.6GHz processor
  • 4GB on board DDR3 memory
  • Extended working temperature range from -20°C to 60°C
  • DVI & VGA video out port, Gigabit LANs and 2 USB
  • MIL-STD-810F in temperature, Vibration and shock
  • MIL-STD-461E EMC compliance
  • 9~36V DC power input

Quick Overview

Military grade embedded computer powered by 6th generation Skylake Core i7-6600U 2.6GHz CPU, 1 x DVI + VGA video out and fully IP67 rated chassis which meet MIL-STD-801F and MIL-STD-461E EMC standard, -20 to 60 degree C working Temp and 9 to 36V DC power input.

Construction
Heavy-duty fully IP67 rated enclosure
Water / Dust proofed and Anti-corrosion
Embedded board
CPU Type: 6th generation Skylake Core i7-6600U 2.6GHz
AMI BIOS
Memory: DDR3L 1066MHz SODIMM, Std. 8 GB
Chipset: Intel SoC Integrated
Intel i210 Ethernet Controller
Intel i219 Ethernet Connection
Video input
DVI + VGA video output
Option for HDMI + VGA video output
Drive bay
1 x mSATA 64GB SSD
1 x 2.5" SDD in Hot swappable array
I/O Port (standard)
2 x USB 2.0
2 x COM, 1 for RS-232, 1 for RS-422
1 x GbE LAN
1 x DVI
1 x VGA
1 x DC Power On/Off
2 x SMA antenna (Optional)
Front panel control
LED indicator for power and hard drive
Power supply
9~36V DC power input
Power consumption: 25W
WWAN
Full size mini PCIe for WWAN 3G/4G card
integrated (Optional)
WLAN
Full size mini PCIe for wireless card IEEE
802.11 a/b/g/n 2 x 2 Dual Band (Optional)

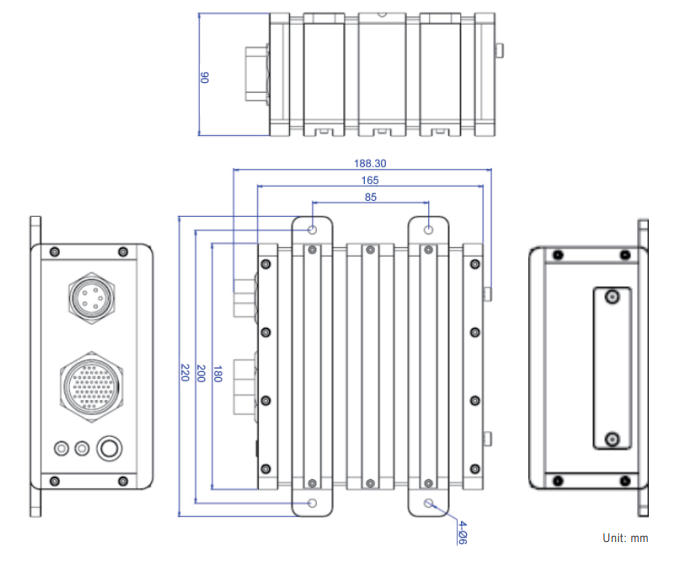

Dimension
8.66"(W) x 3.54"(H) x 7.41"(D)
Weight
8.82lbs
Environmental
Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature: -40°C ~ 80°C (-40°F ~ 185°F)
Humidity: 5~95%, non-condensing
Vibration: 2.5G, 5Hz~500Hz / XYZ, MIL-STD-810F Method 514.5 Procedure I
Shock: 40G, 11ms duration, MIL-STD-810F Method 516.5 Procedure I

FES9280:
Fully IP65 rated fanless embedded system, 6th generation Skylake Core i7-6600U 2.6GHz CPU, 8GB DDR3 SO-DIMM memory, 2 USB, 1 COM , 1 LAN , DVI & VGA video output, 9 to 36VDC power input, -20 to 60 degree C wide working temperature.


Document Description Download Link
file icon FES9280-SP.pdf Spec Sheet
file icon FES9280-UM.pdf User Manual
file icon FES9280-PA.pdf Pin Assignments
