NOTICE: PRODUCT CURRENTLY NOT AVAILABLE. RELATED PRODUCT: PM6170 - 17" 1280 X 1024 OPEN FRAME MONITOR

Loading...
PM-S0150

PM-S0150

APS9550

APS9550

PM-S0170

  • Open frame monitor with front mounting bracket
  • 17 inch 1280 x 1024 350-nit high brightness LED backlight monitor
  • VGA video input, option for DVI, SV+AV, or DVI + HDMI
  • Option for 700 / 1000 / 1500 nits high brightness panel
  • Option for Resistive, Capacitive, or SAW type touchscreen
  • Option for digital signage and light or motion sensor
  • Panel or VESA (75mm) mount ready
  • -30°C to 80°C wide range working temperature
  • External AC adapter, option for 24VDC power input
Availability: In stock
SKU
PM-S0170
Email
17 inch 1280 x 1024 LED back light 350-nit LCD with VGA port and -30 to 80 degree C wide range working temperature, integrated into a metal open frame monitor enclosure, Option for touch screen, DVI, HDMI or SV+AV input, 700-nits / 1000-nits / 1700-nits panel, motion or light sensor & 24VDC input.
Material
Heavy duty steel
LCD Panel
Size: 17 inch
Max Resolution: 1280 x 1024
Brightness (cd/m²): 350
Contrast Ratio (typ) : 1000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 337.92 x 270.34
Colors: 16.7M
Backlight: LED
MTBF (hrs): 35,000
Option 700 / 1000 / 1500 nits high brightness panel
Option digital signage (stand-alone), MP 480P/1080P
Option motion sensor or light sensor
LCD Protection (Option)
Protected glass (AR/AR with anti-vandal/AG)
Video input
VGA video input
Option for DVI or DVI + HDMI or SV + AV
Touch screen (Option)
Resistive, Capacitive or SAW type touch screen, USB port
Rear panel control
power on/off switch
OSD membrane switch
Audio System
2W speaker x 2
Mounting Type
Open frame monitor with front mounting bracket
VESA (75mm) mounting holes
Connectors
1 x VGA port (15 pin female D-Sub)
1 x PC Audio (stereo headphone jack)
1 x DC power plug
Power supply
External auto-sensing 90 to 260VAC, 50/ 60Hz power adapter
Option for 24V DC power supply
Weight
13.23 lb / 6 kg

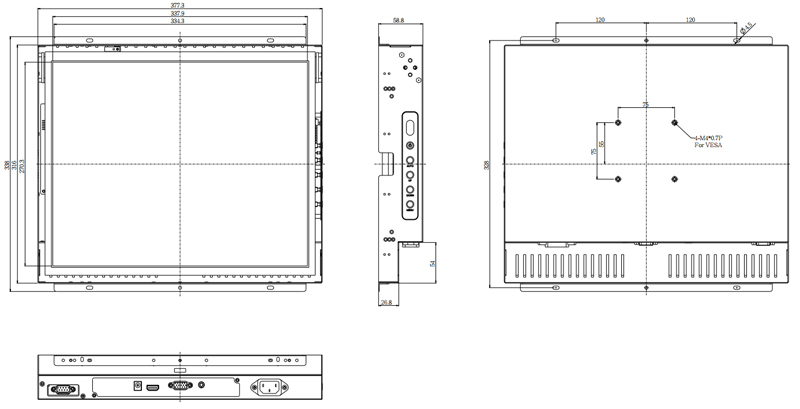

Dimension
13.28"(W) x 13.31"(H) x 2.31"(D)
Environmental
Operating Temperature: -30°C to 80°C (22°F to 176°F)
Storage Temperature: -30°C to 80°C (22°F to 176°F)
Relative humidity: 10~90%, non-condensing
Certification
FCC, CE

PM-S0170:
17 inch 1280 x 1024 350-nit high brightness LCD panel, VGA video input, VESA (75mm) mounting holes, -30°C to 80°C wide operating temperature, open frame metal enclosure, Black color. Option for high brightness LCD panel, DVI / SV+AV / DVI+HDMI, AR or AG protected glass, Resistive / Capacitive / SAW type touchscreen, digital signage, light or motion sensor, and 24VDC power input.

Document
Description
Download Link
file iconPM-S0170-SP.pdf
Spec Sheet
  • PM-S0170
    17 inch 1280 x 1024 panel mount monitor
    350-nits high brightness LCD panel
    Option for 700, 1000 and 1700-nits sunlight readable LCD panel
    Option for light and motion sensor
    15-pin VGA video input
    Option for DVI, SV+AV video input
    Option for touch screen
    External 110/220VAC power adapter
    Option for 24VDC power input
    Option for AR or AG glass protection
    Option for digital sigbage - stand alone
    Open frame monitor with front mounting bracket and VESA mounting holes
