Panel PC comes with 18.5 inch 1366 x 768 LCD panel and projected capacitive 2-point multi-touch screen, it powered by Atom N2600 1.6GHz CPU and HDMI + VGA video out, it also comes with a fanless plastic housing with IP65 rated front bezel & 0 to 50 degree C wide range working temperature.

Skip to the beginning of the images gallery

RMC7215C

FES8685

PCMT8185

Fanless plastic housing with IP65 rated front bezel
18.5 inch 1366 x 768 LED backlight monitor
Projected Capacitive 2-point multi-touch screen monitor
Atom N2600 1.6GHz embedded system
Support waterproof speaker
1 LAN, 4 USB, 1 COM & HDMI+VGA output
12V DC power input

$1,586.00

Availability: In stock

SKU

PCMT8185

Panel PC - 18.5 inch 1366 x 768 multi-touch screen and Atom N2600 1.6GHz embedded CPU and fan less PC cooling system , has IP65 rated front plastic bezel, water proofed stereo speaker and front Camera with 2 MEGA pixel + 30 FPS and 12VDC power input.

Specification

Material: Fanless plastic housing, IP65 water proof in front side

LCD panel: Size: 18.5”
Max. Resolution: 1366 x 768
Brightness: 250 cd/m^2
Contrast Ratio: 1000:1
Viewing Angle (H/V): 170'(H)/ 160'(V)
Backlight: LED
Colors: 16.7M

Touch screen: Projected capacitive 2-point multi-touch screen monitor

System: CPU: Atom N2600 1.6GHz CPU
Memory Slot: DDR3-1033 SO-DIMM Max. 4GB
Chipset: NM10

Video input: VGA & HDMI video output

Drive Bay: 2.5”HDD (default 160GB)

Connectors: 1 x COM port, RS-232
3 x USB 2.0
1 x USB 3.0
1 x Ethernet ports, 10/100/1000Mbps
1 x VGA video out port
1 x HDMI vide out port
1 x Audio (Line-in, Line-out, Mic-in)

Speaker: 2 x 2W speaker/with waterproof speaker

Camera:: 2 Mega pixels camera with 30 FPS and waterproof shutter

WiFi & Bluetooth (Option):: 802.11b/g/n + Bluetooth Class 2 BT2.1 + EDR

Smart Card Reader (Option):: User Card - Friction Type, 200,000 Cycles
SAM card - 5000 insertion

Barcode Reader (Option):: 2D QR Code, DataMatrix (ECC 200), PDF417, MaxiCode, Aztec
1D GS1 DataBar (RSS), Code 39, Code 93, Code 128, Interleaved 2 of 5, Industrial 2 of 5,
Codabar (NW7), UPC-A, UPC-E, UCC/EAN-128, EAN-13

RFID Reader (Option):: Supported RFID Card: Mifare UltraLight, Mifare One (S50), Mifare One (S70)

Power supply: 12V DC power input

Mounting: VESA mount

Weight: 9.92lbs

Dimension: 18.39"(W) x 1.38"(D) x 11.97"(H)

Environmental: Environment Temperature
Operating: 0 to 50 degree C
Relative Humidity: 30%-90%, non-condensing

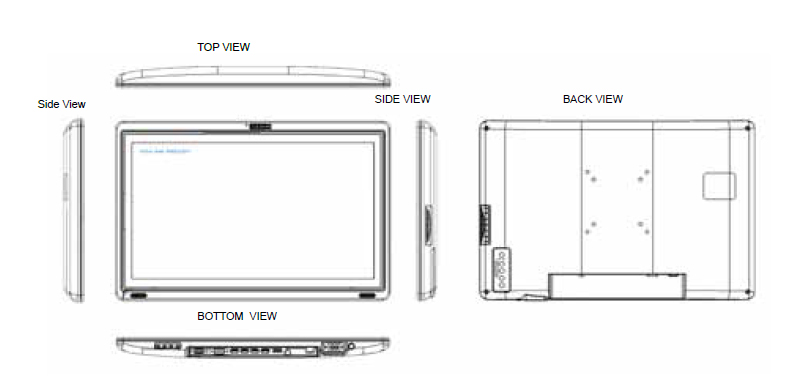

Dimensions

Order Info

PCMT8185:
18.5 inch industrial Panel PC with fanless plastic housing, IP65 rated front bezel, Atom N2600 1.6GHz embedded computer, 4GB DDR3 memory, 64GB SSD, on board Gigabit LAN and 2-point projected capacitive touch screen. Windows embedded standard 7

Price: $1,586.00

Downloads

Document

Description

Download Link

PCMT8185-SP.pdf

Spec Sheet

Configure Now

PCMT8185

Panel PC
18.5 inch 1366 x 768 250-nit LED-LCD panel
2-point capacity type touch screen
Atom N2600 1.6GHz CPU
4GB SODIM memory
64GB SSD
On board Giga-LAN, Option for WiFi & Bluetooth
2 x 2W water proof stereo speaker
Option for smart card, RFID and barcode reader
IP65 rated Plastic front bezel (white color) and back enclosure
12VDC 25W power input
Windows embedded 7 standard
0 to 50 degree C working temperature
VESA mount ready

Starting at:
$1,586.00

PCMT8185

$1,586.00

LCD monitor

18.5" 1366 by 768 2-point projected capacitive touch screen

CPU

Atom N2600 1.6GHz

memory

4GB memory

Storage device

64GB SSD

Qty:

18.5" touch Panel PC

A ultra slim inteiilgent display unit utilizes an embedded N2600 1.6GHz and NM10 express chip set as its core processing unit, and allows up to 4GB DDR3 memory to satisfy high speed performance applications with minimal power consumption. This new industrial panel PC boasts a powerful 18.5” LED LCD monitor. With resolution of 1366 x 768 and a responsive projected capacitive 2-point multi-touch display, the 18.5" touch screen offers vivid display and ease of operation.
The fan less embedded computer comes standard with one 160GB 2.5 in. SATA Hard Disk Drive along with one Ethernet, one COM port, four USB ports, audio (Line-in, Line-out, Mic-in) port, as well as one HDMI and one VGA out port to accommodate a wide range of connectivity requirements. The PCMT8185 housed in a fan less plastic housing with rugged IP65 rated front bezel, weighs only 4.5 kg, perfectly fulfill a variety of applications in industrial environments.
This rugged panel computer has an operating temperature range of 32°F to 122°F (0°C to +50°C) and supports a 12V DC voltage 25 wattage power input. In addition to panel mounting, the PCMT8185 comes with a rear standard VESA mount for integration and mounting, allowing for this panel PC to be situated into any location that offers a VESA mount which enables users to run demanding applications in the field, floor or office environment.

PCMT8185: 18.5” Industrial Touch Screen Panel PC with projected capacitive 2-point mult-touch screen, Atom Dual Core N2600 1.6GHz, fanless industrial design, IP65 rated front beze;, configurations with 2GB DDR3 memory, 1 x 2.5” SATA HDD, 1 x Ethernet, 1 x Serial, 4 x USB, 12V DC power input.
