Military grade 10.4" Panel PC powered by 5th generation Broadwell Core i5 5200U 2.2GHz CPU and a fully IP67 rated rugged enclosure, meet Mil-Std-810G & -20 to 60 degree C wide range working temperature.

PCM8210

PCM8210

  • Fully IP67 rated rugged enclosure
  • 10.4 inch 1024 x 768 LED backlight monitor
  • 5-wire resistive type touch screen monitor
  • 350-nits high brightness LCD panel, option for 1000-nits
  • 5th generation Core i5 5200U 2.2GHz embedded system
  • MIL-STD-810G -20ºC to 60ºC wide range working temperature
  • 1 LAN, 2 USB & 1 COM
  • Wide range 9~36V DC power input

Quick Overview

Panel PC - 10.4 inch 1024 x 768 350-nits touch screen LCD and 5th generation Core i5 5200U 2.2GHz embedded CPU and fan less PC cooling system , has a fully IP67 rated rugged enclosure, 9 to 36VDC input, meet MIL-STD-810G testing standard. and -20 to 60 degree C wide range working temperature.

Material
Fully IP67 rated rugged enclosure
LCD panel
Size: 10.4”
Max. Resolution: 1024 x 768
Brightness: 350 cd/m^2
Contrast Ratio: 1200:1
Viewing Angle (H/V): 176'(H)/ 176'(V)
Backlight: LED
Colors: 16.2M
MTBF: 50,000 hrs
Option for 1000-nit high brightness display
Touch screen
5-wire resistive type touch screen monitor
System
CPU: 5th gen. Broadwell Core i5 5200U 2.2GHz CPU
Memory Slot: DDR3L SO-DIMM 4GB, Max. 8GB
Chipset: SoC Integrated
Graphic: Intel HD Graphics 4400
Ethernet: Intel Ethernet Controller I211-AT +
Intel Gigabit Ethernet PHY I218-LM
Drive Bay
1 x mSATA SSD 64GB
Connectors
1 x COM port, RS-232
2 x USB 2.0
1 x RJ45 GbE LAN
1 x 9~36V DC Input
Power supply
Wide range 9~36V DC power input Power Consumption: 58 watts (typical)
Mounting
VESA mount 75x75mm
30°~90° Swivel bracket (Option)
Weight
Net Weight: 11lbs
Gross Weight: 13.23lbs

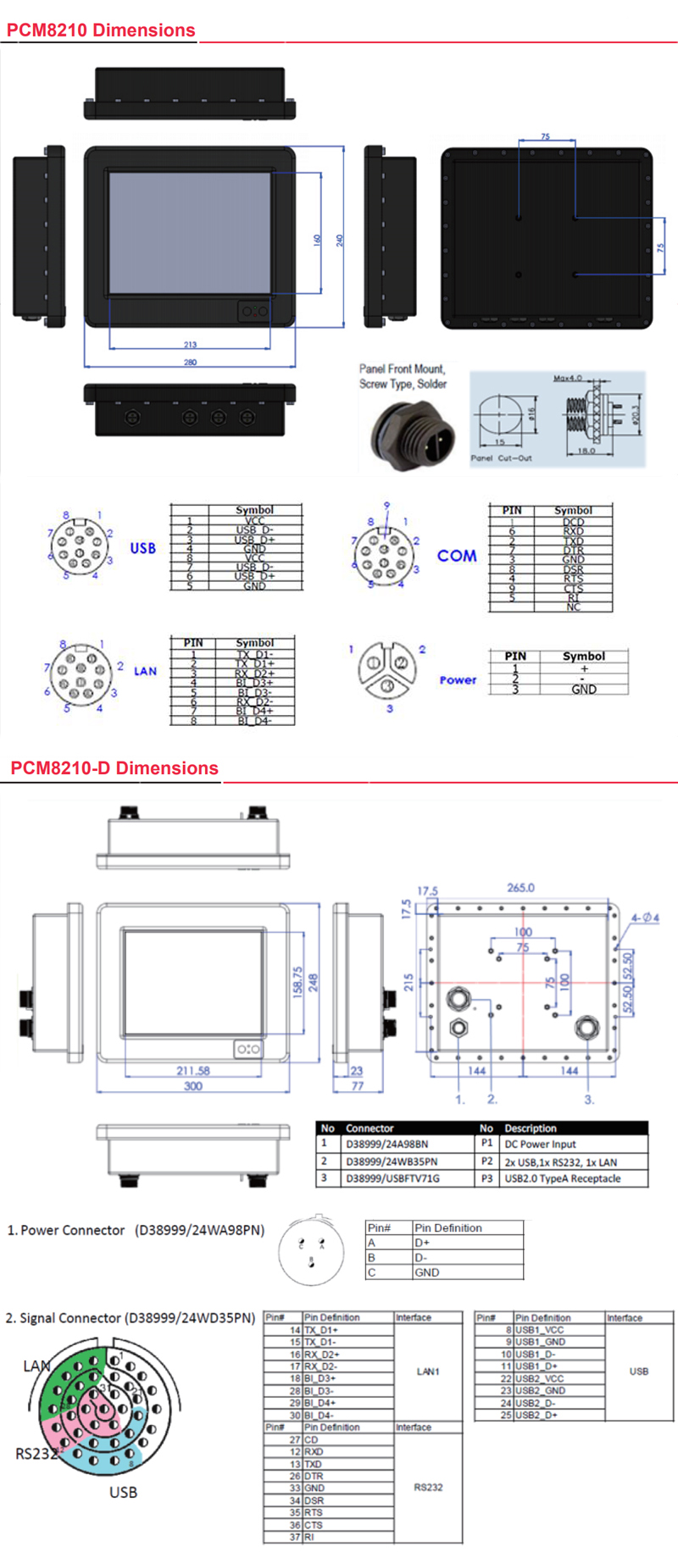

Dimension
PCM8210: 11.02”(W) x 9.45”(H)
PCM8210-D: 11.81"(W) x 9.76"(H) x 3.03"(D)
Package Dimension: 15"(W) x 13.3"(H) x 7.08"(D)
Environmental
Environment Temperature
Operating: -20°C to 60°C (-4°F to 140°F)
Storage: -30° to 70°C (-22°F to 158°F)
Relative Humidity: 10%-95%, non-condensing
IP Protection: Full-IP67
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6

PCM8210:
10.4 inch industrial Panel PC with fully IP67 rated rugged enclosure, 5th generation Broadwell Core i5 5200U 2.2GHz embedded computer, 4GB DDR3 memory, 64/128GB SDD, on board Gigabit LAN, and resistive type touch screen monitor. Water-sealed connectors.

PCM8210-D:
10.4 inch industrial Panel PC with fully IP67 rated rugged enclosure, 5th generation Broadwell Core i5 5200U 2.2GHz embedded computer, 4GB DDR3 memory, 64/128GB SDD, on board Gigabit LAN, and resistive type touch screen monitor. D38999 military type connectors.

Document Description Download Link
file icon PCM8210-SP.pdf Spec Sheet
file icon PCM8210-MILSTD461F-TR.pdf MIL-STD-461F Test Report
file icon PCM8210-MILSTD810G-TR.pdf MIL-STD-810G Test Report
