19" fully IP66 rated anti-corrosion stainless steel touch Panel PC powered by 4th generation Haswell Core i5-4200U 1.6GHz fanless CPU, 5-wire resistive type touch screen, extended working temperature of -20ºC ~ 55ºC.

PCH8193

PCH8193

  • Fully IP66 rated stainless enclosure
  • 19 inch 1280 x 1024 industrial monitor
  • 5-wire resistive type touch screen
  • 4th generation Haswell Core i5-4200U 1.6GHz CPU
  • IP66/IP67 rated cable and connector
  • Extended working temperature -20°C to 55°C
  • AC power input, option for 9~36V DC power input

Quick Overview

Panel PC with 19 inch 1280 x 1024 LCD touch screen, Core i5-4200U 1.6GHz embedded CPU, has a fully IP66 rated stainless steel chassis and front bezel and AC power input.

Material
Fully IP66 rated anti-corrosion stainless steel housing

LCD panel
Size: 19”
Max. Resolution: 1280 x 1024
Brightness: 350 cd/m^2
Contrast Ratio: 1000:1
Viewing Angle (H/V): 170'(H)/ 160'(V)
Colors: 16.7M, 6 bits
Option for 1000-nit high brightness display

Touch
5-wire resistive type touch screen monitor
Option for projected capacitive type touch screen monitor

System
CPU: 4th generation Haswell Core i5-4200U 1.6GHz CPU
Chipset: QM87
Memory: 1 x 4GB DDR3 1366/1600MHz SO-DIMM (Max. 16GB)

Drive Bay
1 x 64GB SSD, option for 256GB



OS
Windows 7 Professional (Option)

Connectors
2 x RS232 (IP67)
2 x USB (IP67)
1 x RJ45 GbE LAN (IP67)
1 x AC input (IP66)
1 x Power On/Off
1 x Reset Button

Power supply
AC power input
Power consumption: 60W (typ.)
Option for 9~36V DC power input

Mounting
VESA mount

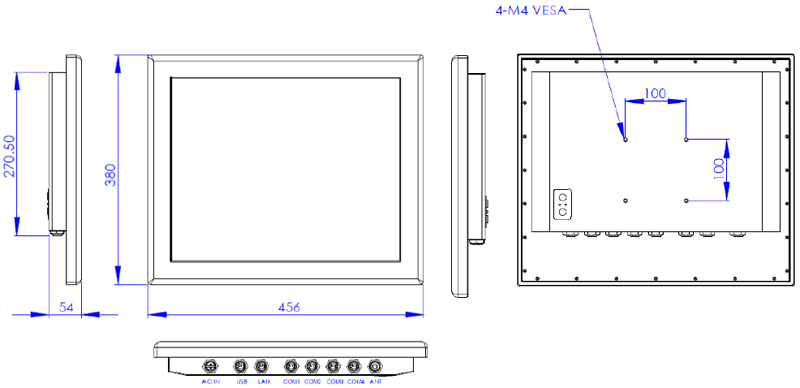

Dimension
17.95”(W) x 14.96”(H) x 2.13”(D)


Environmental
Operating Temp: -20°C to 55°C (-4°F to 131°F)
Relative humidity: 10~95%, non-condensing

PCH8193:
19 inch 1280 x 1024 industrial Panel PC with fully IP66 rated stainless enclosure, 4th generation Haswell Core i5-4200U 1.6GHz embedded computer, on board DDR3 memory, 1 x SSD drive bay, and 5-wire resistive type touch screen monitor.

Price start from:

  • Stainless steel Panel PC
    Core i5 4200U 2.6GHz dual Core embedded CPU
    4GB memory, up to 16GB
    1 x 2.5" hard drive or SSD
    Fanless embedded computer
    19 inch 1280 x 1024 LCD panel
    Resistive type touch screen
    Fully IP65 rated stainless steel enclosure and front bezel
    VESA mount ready
    Starting at: $2315.00

PCH8193

$2,315.00

* Required Fields

Document Description Download Link
file icon PCH8193-SP.pdf Spec Sheet
