KD80170
- 1U high 20 inch depth rackmount drawer
- 17.3 inch 1920 x 1080 Full HD industrial LCD monitor
- Front OSD (On Screen Display) function
- VGA + DVI video input
- Full IP65 rated rugged enclosure
- Full IP65 rated rubber keyboard and pointer
- Option for 1000-nit high brightness display
- AC power input with VESA DPMS
- Material
- IP65 rated rugged enclosure
- LCD Panel
- Size: 17.3 inch
Resolution: 1920 x 1080
Brightness: 400
Contrast Ratio (typ.): 600: 1
Active Area (mm): 381.888(H) x 214.812(V)
Pixel Pitch (mm): 0.1989(H) x 0.1989(V)
Viewing Angle: 170° x 160°
Backlight: LED
Colors: 16.7M
MTBF: 50,000 hours
Option for 1000-nit high brightness display
- Keyboard & Touchpad
- Full IP65 rated rubber keyboard & pointer
Option for keypad
- Plug & Play
- VESA DDC 1/2B
- Video input
- VGA + DVI video input
- Glass
- AR protective glass
- Mounting
- Rear mounting bracket extend up to 24" depth
- Speaker (Option)
- 2 x 2W speakers
- OSD (On Screen Display)
- 5-key OSD control buttons (Menu, Auto Adjust, Brightness adjustment)
- Connectors
- 1 x VGA (IP65 connector)
1 x DVI (IP65 connector)
1 x AC power input (IP65 connector)
1 x USB for keyboard
- Power supply
- AC power input
Power Consumption: 25W (typ.)
Power Managment: VEDA DPMS Compliant

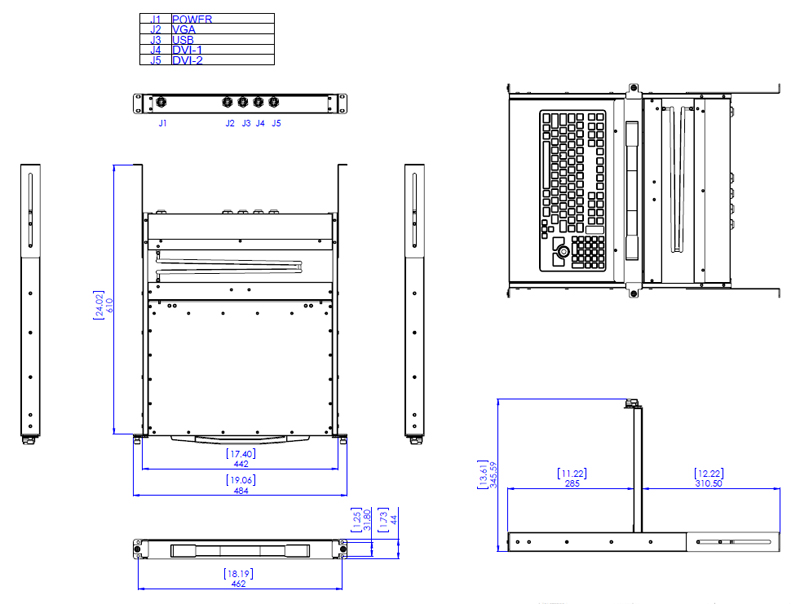

- Dimension
- 17.4"(W) x 20.0"(D) x 1.73"(H)
- Environmental
- Operating Tememperature: -10° to 60° C (14° to 140° F)
Storage Tememperature: -30° to 70° C (-22° to 158° F)
Shock: Compliance to MIL-STD-810F Method 516.6 Procedure I
Vibration: Compliance to MIL-STD-810F Method 514.5 Procedure I
Reative Humidity: 5-95%, non-condensing
KD80170:
17.3 inch 1920 x 1080 full HD monitor, 400-nit brightness, VGA + DVI, IP65 rated rubber keyboard and pointer, full IP65 rated rugged enclosure, 1U high & 20.0” depth rackmount terminal, Black color.
KD80170H:
17.3 inch 1920 x 1080 full HD monitor, 1000-nit brightness, VGA + DVI, IP65 rated rubber keyboard and pointer, full IP65 rated rugged enclosure, 1U high & 20.0” depth rackmount terminal, Black color.
KD80170-SP.pdf-
KD80170
Starting at:
PRODUCT DESCRIPTION
17.3-inch rack console with 1920 x 1080 full HD LCD and VGA + DVI input, full IP65 rated rubber keyboard, pointer, and connector in a 1U high 20.0-inch depth rack mount drawer. This model has a full IP65 rated rugged enclosure and includes a full HD industrial LCD monitor. It has an OSD (On Screen Display) function and allows for VGA + DVI input. KD80170 also has a full IP65 rated rubber keyboard and pointer. The LCD has a brightness of 400 and a contrast ratio of 600:1. Its active area in mm is 381.888 (H) x 214.812(V). Its pixel pitch in mm is 0.1989(h) x 0.1989(V). Its viewing angle is 170 degrees (H) and 160 degrees (V). It has LED backlights. Its colors are 16.7 M. Its MTBF goes to 50,000 hours. Option for a 1000-nit high brightness display is available. The monitor features AR protective glass and waterproof protection. It has the option of 2 x 2w speakers, 5-key OSD control buttons (Menu, auto adjust, brightness, and adjustment), and AC power input. Its power consumption is 32W (typ.) and power management is VEDA DPMS compliant. It's I/O includes 1 x VGA (IP65 connector), 1 x DVI (IP65 connector), 1 x AC power input (IP65 connector), and 1 x USB for the keyboard. It can operate at -10° to 60° C (14° to 140° F). It can be stored at -30° to 70° C (-22° to 158° F). Its shock resistance has full compliance to MIL-STD-810F Method 516.6 Procedure I. Its immunity to vibrations has full compliance to MIL-STD-810F Method 514.5 Procedure I. It can withstand the humidity of 5-95%, non-condensing.
