Panel mount monitor a 42 inch 1920 x 1080 full HD 1500 nits high brightness industrial LED LCD with IP65 rated aluminum front bezel and 8mm thick protective glass, VGA + DVI-D + HDMI + S-Video + RCA + Audio.

APH9420

  • Aluminum front bezel
  • 42 inch 1920 x 1080 Full HD industrial LCD monitor
  • 1500-nit high brightness display
  • VGA + DVI + HDMI + S-Video + RCA + Audio
  • Option for TV + remote controller
  • Option for touch screen & MCS control
  • Panel mount or VESA (100mm) mount ready
  • External auto-sensing 100/240VAC power adapter
  • Option for 24V or 48V DC power input
Availability: In stock
SKU
APH9420

Panel mount monitor with a 42" 1920 x 1080 1500-nit industrial LED-LCD display with VGA + DVI + HDMI + S-Video + RCA and an aluminum front bezel with protective glass.

Constructional
Aluminum front bezel with 8mm protective glass
Rear rugged heavy-duty metal construction
LCD Panel
Size: 42 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 1500
Contrast Ratio (typ.): 3000:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 930 x 523
Colors: 16.7M
Backlight: LED
MTBF (hrs): 50,000
Video input
VGA + DVI-D + HDMI + S-Video + RCA + Audio + remote controller
OSD menu control
OSD membrane switch control for
Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune
Option for MCS multi-display OSD menu control
1 x RS-232 link port & x 2 RJ-45 ports in/out ports
Cascade up to 64 monitors
RS-232 (link to computer) port
RJ 45 port ( in/out ports between each monitor)
(Cat5 or Cat6 cable, up to 300 meters between each monitor)
Touch screen (Option)
Projected Capacitive-type 10-point multi-touch screen with USB port
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Panel mount (M6) or VESA (100mm, M5) mount
Power supply
External Auto-sensing 100 to 240VAC, 50/ 60Hz power adapter
Consumption: Max. 200 Watt, Standby 20 Watt
Option for 24V or 48V DC power supply
Color
Black (RAL9005)
Weight
78.5 lb / 35.7 kg

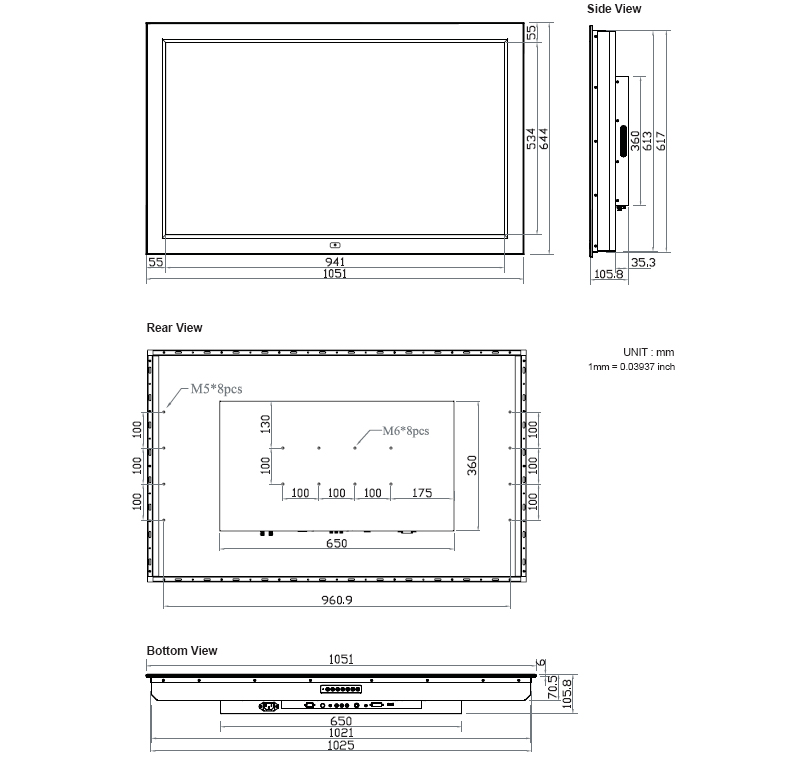

Dimension
41.4"(W) x 25.4"(H) x 4.2"(D)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -5°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11 ms duration)
Vibration: 5~500Hz 1G RMS random vibration
Certification
FCC, CE

APH9420:
42 inch 1920 x 1080 full HD 1500-nit high brightness industrial monitor, VGA + DVI-D + HDMI + S-Video + RCA + Audio + remote controller, aluminum front bezel, panel mount monitor, Black color. Option for projected capacitive type touch screen monitor, TV tuner, auto-dimming, and DC power input.
