The APH8104X is a 10.4" high brightness monitor supporting 1024 x 768 resolution, 1000-nits high brightness display, and VGA + DVI + HDMI video input. Designed for harsh environments, the display features an IP65-rated aluminum front bezel and wide working temperature ranges from -20°C to 60°C. The APH8104X offers upgradable options including S-Video + Composite, Resistive or Capacitive touch screen, and an auto-dimming light sensor.
Loading...
7

APH8070

17.3

APH8172

APH8104X

  • 10.4" high brightness industrial LCD monitor
  • Supports 1024 x 768 native resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + DVI-I + HDMI video input
  • Panel or VESA (75 x 75mm) mount ready
  • IP65 dust & water resistant aluminum front bezel
  • -20°C to 60°C wide range working temperature
  • 15W AC power input
$1,065.00
Availability: In stock
SKU
APH8104X
Email
10.4" 1024 x 768 1000-nit high brightness sunlight readable LCD monitor with an IP65 rated front bezel, extended working temperatures, and AC power input.
Material
IP65 rated rugged metal front bezel
LCD Panel
Size: 10.4 inch
Max Resolution: 1024 x 768
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 1200:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 211.2H x 158.4V
Colors: 16.2M
Backlight: LED
LCD Protection
AR glass protection (AR glass will be removed if touch screen option is selected)
Touch Screen (Option)
Resistive or Capacitive type touch screen
Light Sensor (Option)
Auto dimming light sensor (light sensor at front bezel)
Video input
VGA + DVI + HDMI video input
Option for VGA + DVI-D + HDMI + S-Video + Composite
OSD menu control
OSD Input: 5-key OSD buttons
OSD function: Contrast, Color, Position, Auto-adjustement, Factory Settings
Mounting Type
Panel mount or VESA mount
Power supply
Power Input: AC power input
Consumption: 15W typical, normal operation
Connector
1 x VGA D-Sub 15 pin
1 x DVI-I input
1 x HDMI input
1 x S-Video, Composite (Option)
1 x RS232 for touch screen (Option)
1 x AC input
Weight
TBD

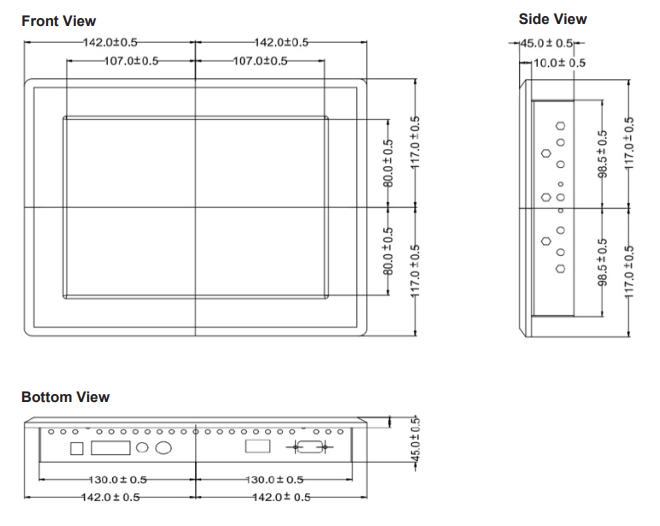

Dimension
11.18"(W) x 9.21"(H) x 1.77"(D)
Environmental
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -30°C to 80°C (-22°F to 176°F)

APH8104X:
 10.4" sunlight readable LCD display, 1000-nits high brightness, 1024 x 768 resolution, VGA + DVI + HDMI video input, -20°C to 60°C wide range working temperature, AC power input, Black color.

Document
Description
Download Link
file iconAPH8104X-SP.pdf
Spec Sheet
  • APH8104X
    10.4" high brightness industrial LCD monitor
    Supports 1024 x 768 native resolution
    1000-nits high brightness sunlight readable display
    VGA + DVI-I + HDMI video input
    Panel or VESA (75 x 75mm) mount ready
    IP65 dust & water resistant aluminum front bezel
    -20°C to 60°C wide range working temperature
    15W AC power input
    Starting at:
    $1,065.00
APH8104X
$1,065.00

PRODUCT DESCRIPTION
APH8104X is a 10.4-inch panel mount monitor with 1024 x 768 resolutions and 1000-nits high brightness. The front bezel is built of aluminum with IP65 rated. It is protected with AR glass with an option for a touch screen. The LCD panel displays a contrast ratio of 1200:1 with 16.2M (262K Colors) with LED backlight. APH8104X supports VGA + DVI + HDMI video input with an option for S-Video, composite.  The optional touch screen is 5-wire resistive or capacitive type touch with RS232 port. The On-Screen Display input contains 5-key OSB buttons with OSD function of contrast, color, position, auto-adjustment, and factory settings. The connectors included in APH8104X are VGA D-Sub 15-pin port, DVI, HDMI, and AC input with optional S-Video and RS232. The audio system uses two 1W speaker s. The power supply operates on AC power input with an option for external AC power adapter. The wide operating temperature is from -4°F to 140°F (-20°C to 60°C) and storage temperature at -22°F to 176°F (-30°C to 80°C). The dimension is 11.18"(W) x 9.21"(H) x 1.77"(D).
